BIG-IQ Access Policy Manager¶

WORKFLOW 1: Access Policy Review¶

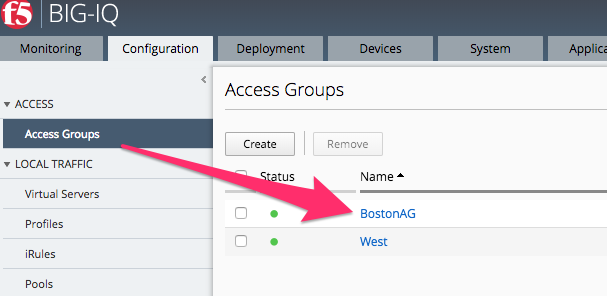

Navigate to Configuration Access Access Groups BostonAG Access Policies Per-Session Policies TestAccessProfile

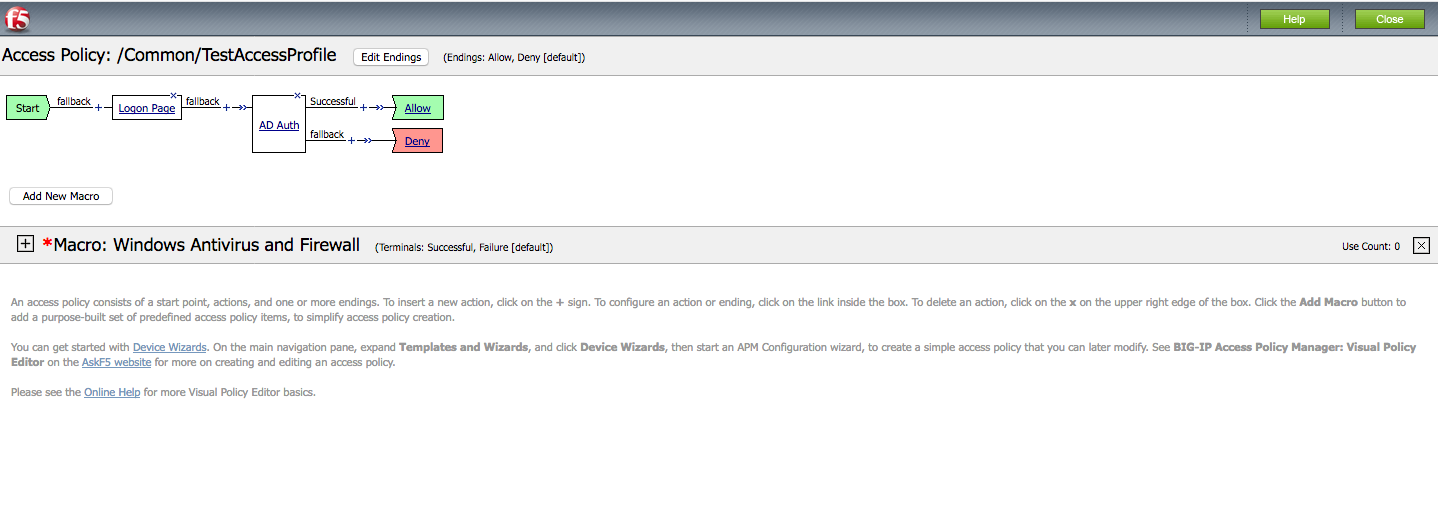

The access policy will be displayed in a new screen as shown below. Compare the Access policy in BIG IQ with the policy in BIG IP source device and ensure that they are exactly same. Open the browser shortcut for the BIG-IP01 in a new tab from Chrome.

WORKFLOW 2: Location Specific Object Modification¶

• Navigate to Configuration Access Access Groups BostonAG Authentication Active Directory Active Directory



  LSO or Location Specific Objects are objects within an access profile/policy that relate to more specific geographic areas normally and are not shared between all devices by default to prevent misconfigurations. As an example, AAA servers are located in all office/data centers globally however if an end user is accessing a policy on an APM in Europe we wouldn’t want their authentication requests to be sent over a WAN link to some Domain Controller in another country and cause a tremendous delay for that user.

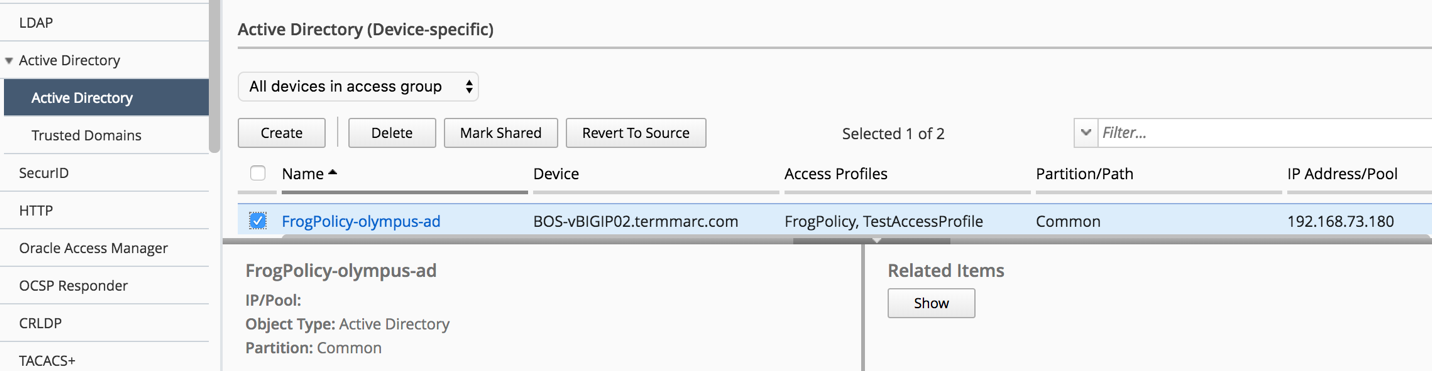

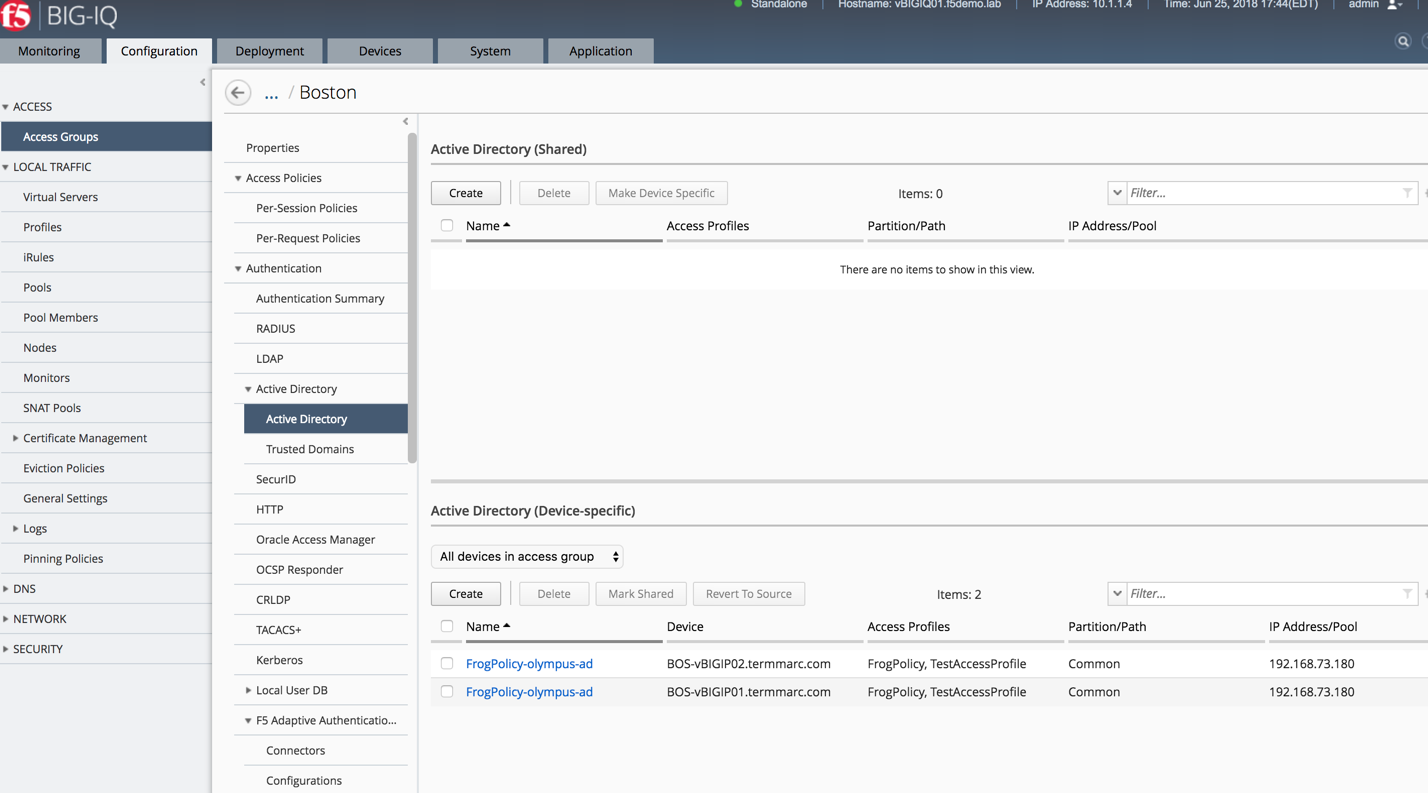

• Click the check box for the FrogPolicy-olympus-ad for the BIGIP02 device.

• Click the Mark Shared button and accept the warning



  This will move the object from the device specific location to the Shared resources location.

• Click on the AAA object to edit the properties

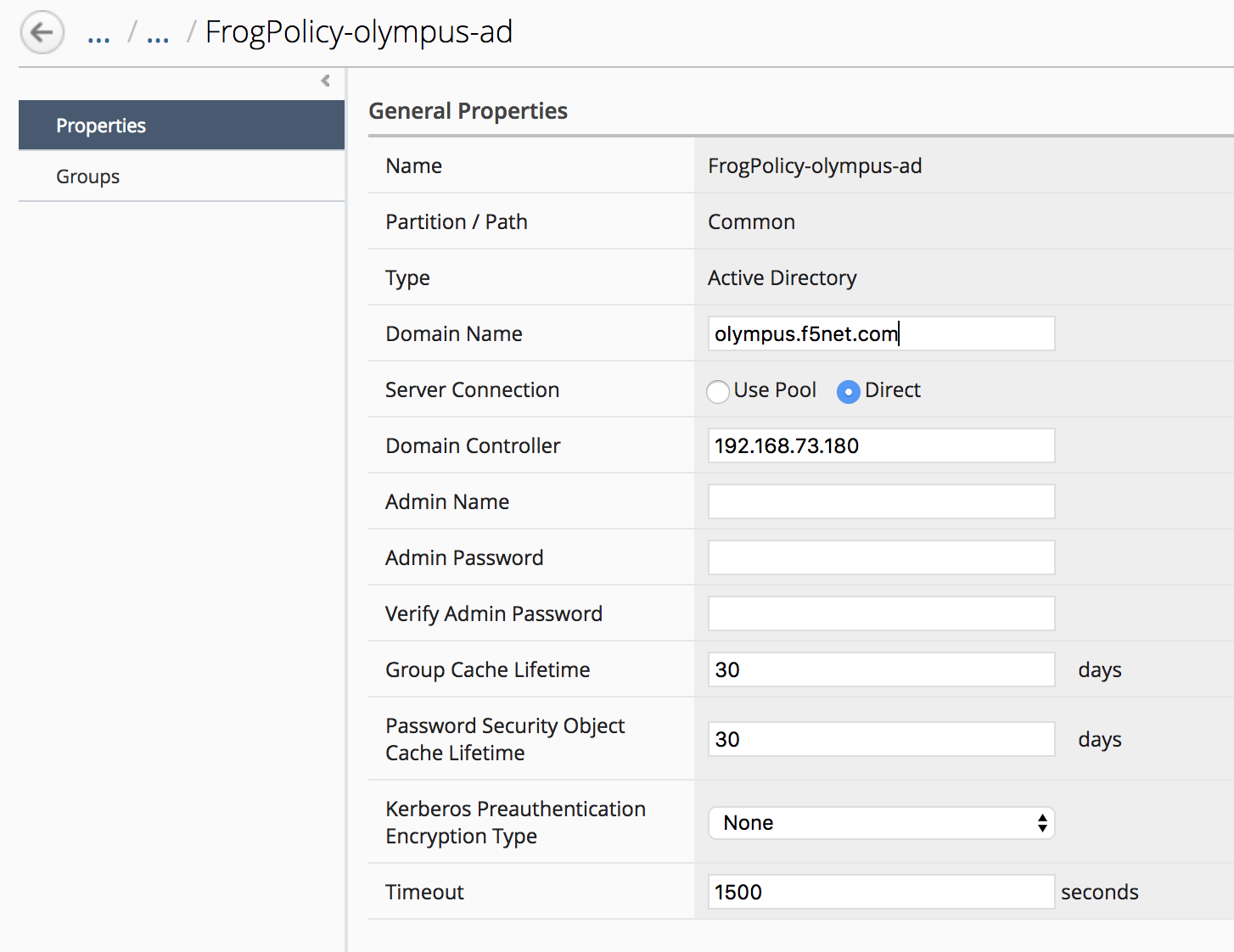

• Change the Timeout value from 15 to 1500

• Click Save & Close



  BIG IQ provides the ability to transition LSO objects to Shared Objects and vice versa. When an LSO object is made Shared it will have the same configuration across all the BIG IPs after deployment.

WORKFLOW 3: Modifying an existing APM access policy using VPE¶

• Navigate to ConfigurationAccessAccess Groups

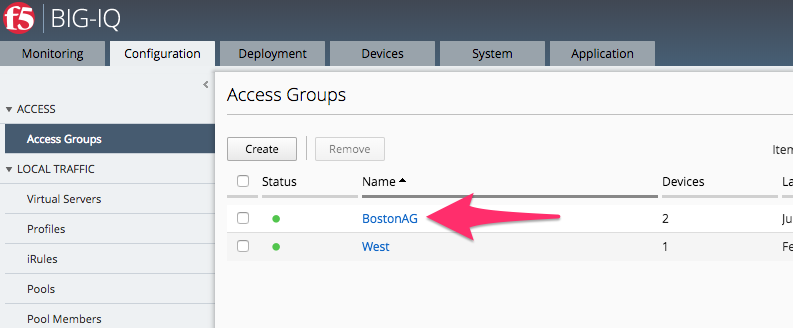

• Select BostonAG

Click on Access Policies -> Per Session Policies:

Select TestAccessProfile and add the following objects:

• Logon page (accept default settings)
• AD Auth using FrogPolicy-Olympus-AD
• If AD Auth successful, your allowed access

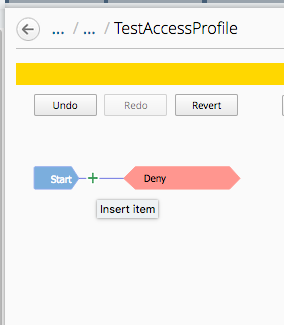

Start by hovering the mouse over the blue line in the policy flow between the Start and Ending points and clicking the Green Plus sign.

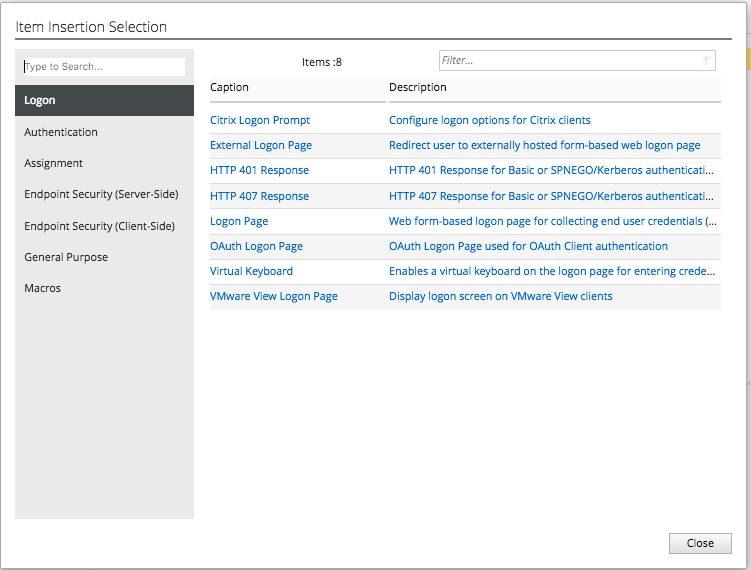

Now select the “Logon Page” object on the right side of the pop up window. Then click “Save” on the next pop up window.

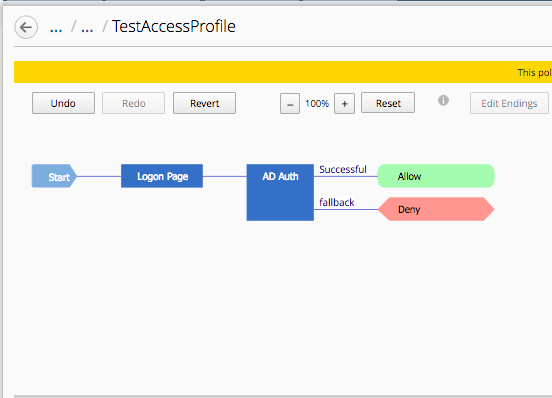

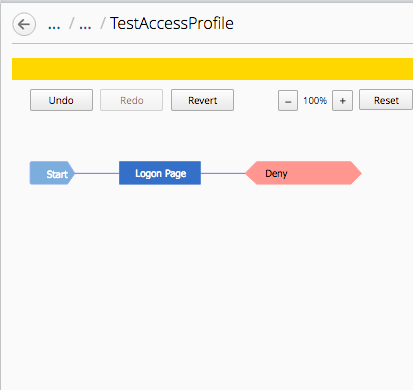

The result should look like the picture below.

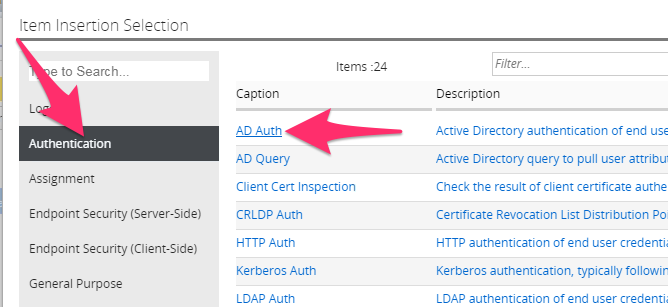

Now repeat the steps by hovering the mouse on the blue line between the Logon Page object and the Ending Deny and click the Green plus sign to add the Authentication object of AD Auth.

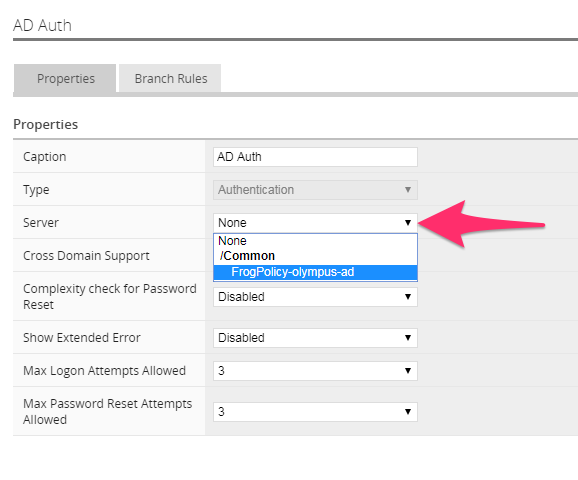

Now click the Server drop down to select FrogPolicy-olympus-ad and then click “Save”.

Change the Ending DENY to ALLOW.

Notice the Yellow Banner warning that there are un-saved changes. Click the Save button at the bottom of the profile page. Click OK on the Policy Save Conformation pop up window.

After modifying the access profile, go to “Deployment tab- > Evaluate & Deploy -> Access”

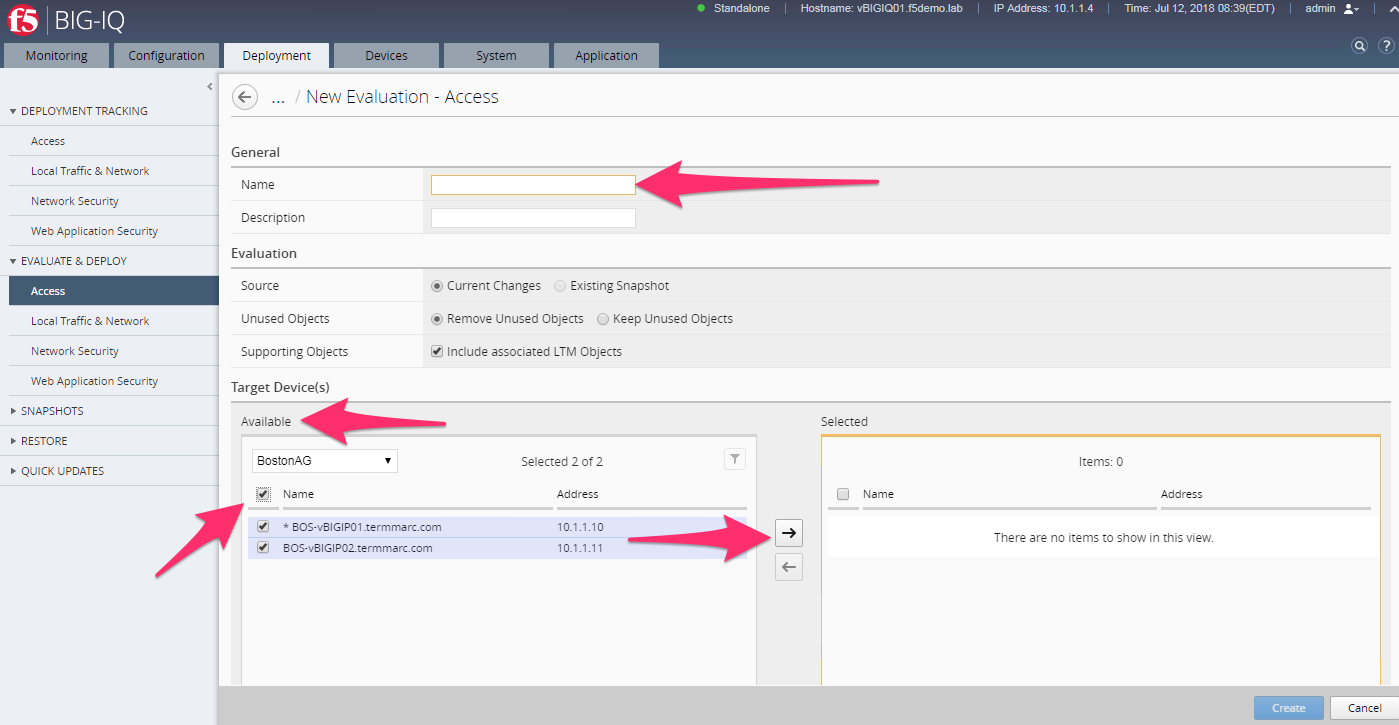

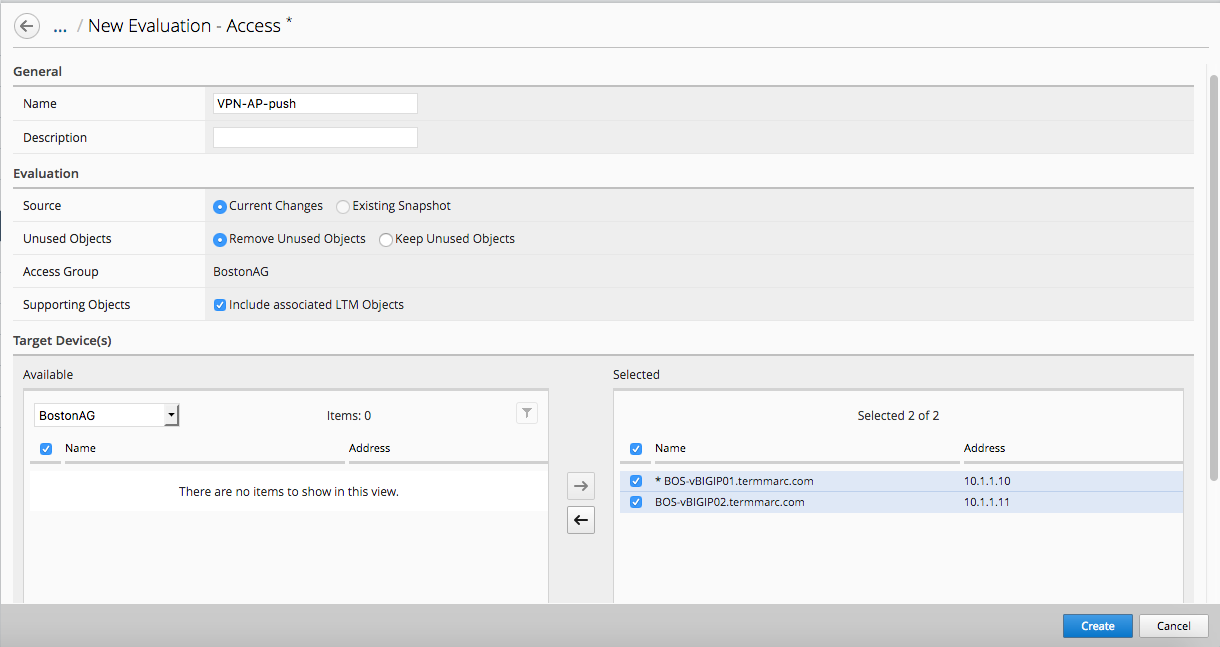

Click on Create in Evaluation section. Enter a name in the Name Field then click the Checkbox in the Available section of Target Devices and Click the arrow to the right to move both BOS BIGIP deivces to the Selected area and then click the Create button at the bottom.

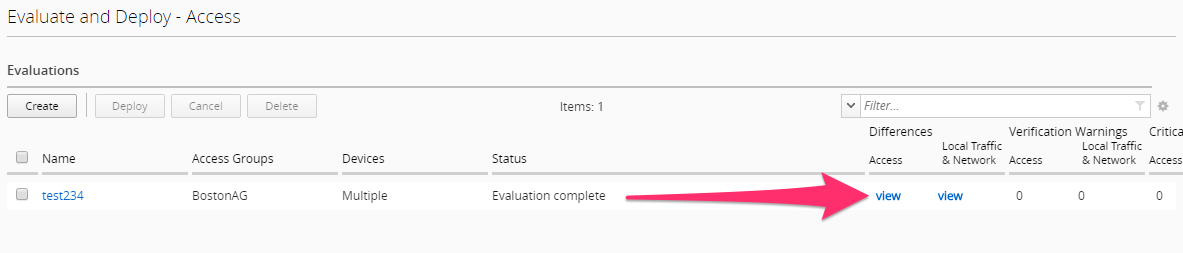

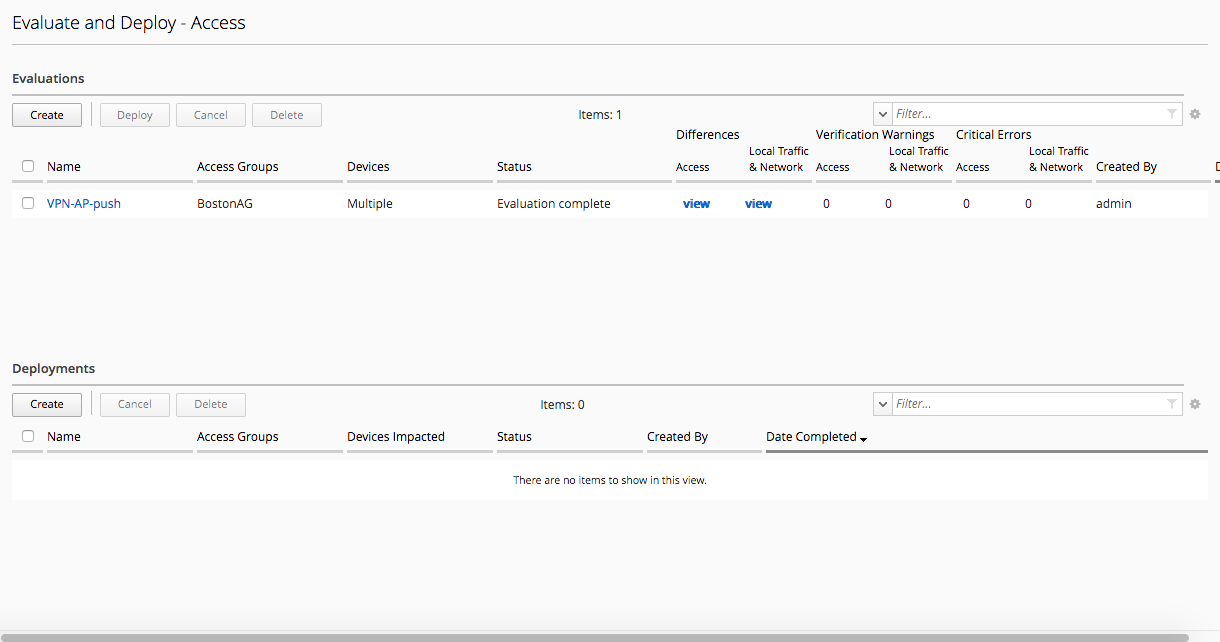

The BIG-IQ will now start evaluating the configurations on the BIG-IP devices and provide a comparison of the changes between the stored configuration within the BIG-IQ versus the current running configurations on the BIG-IP systems. When the evaluation completes you will see a screen like the one below. Click the “VIEW” link under the Access column.

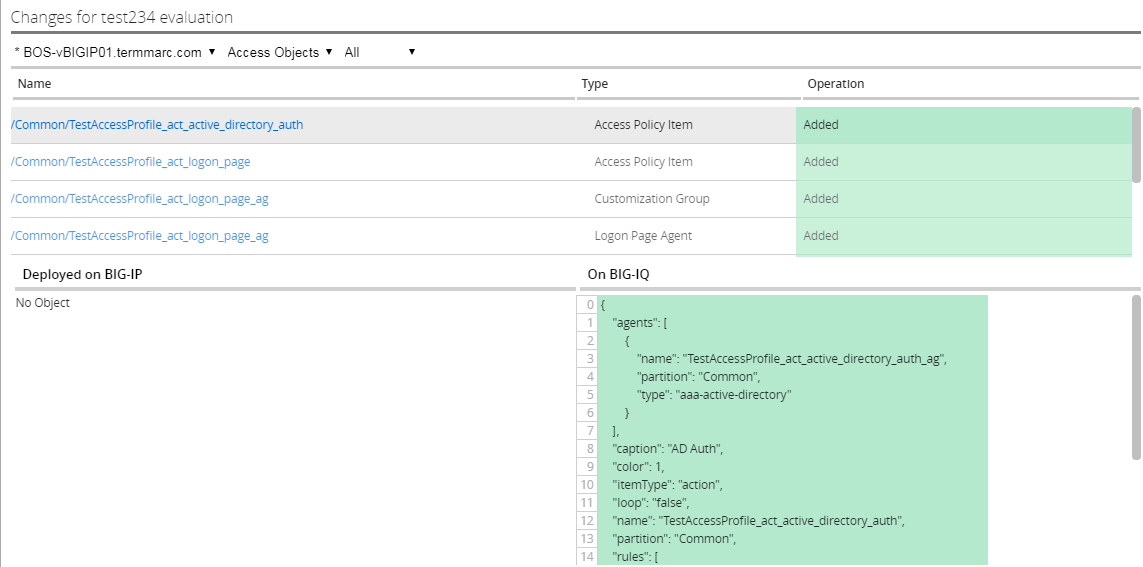

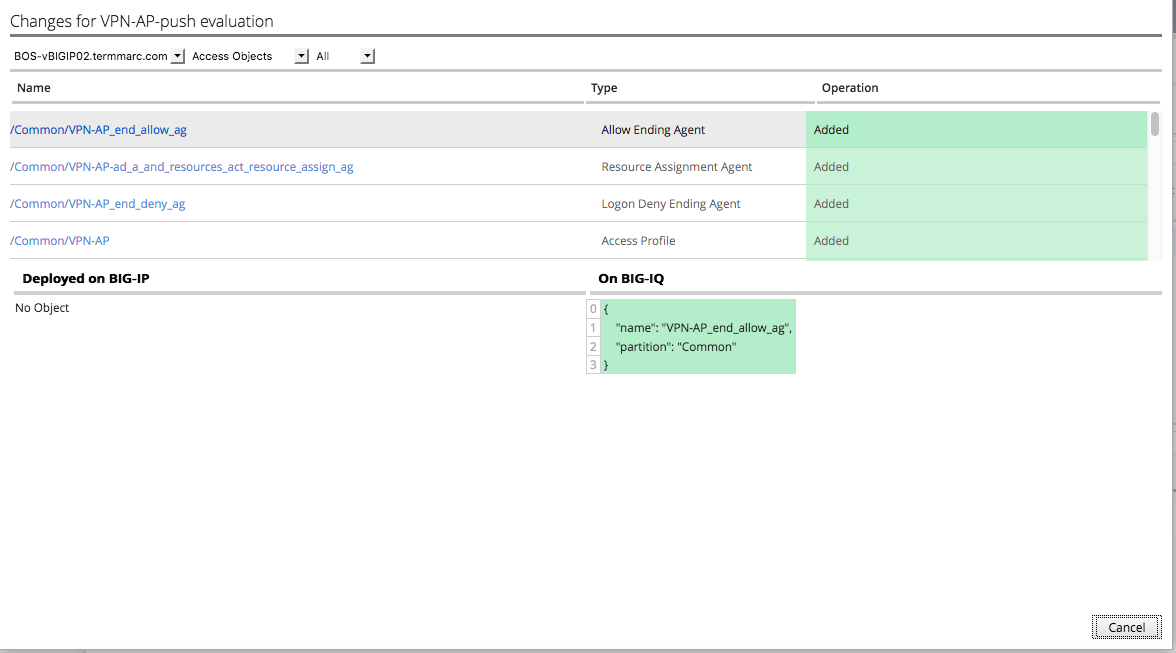

In the evaluation section, you will be able to view the added/changed items. After reviewing click the Cancel button at the bottom of the pop up window.

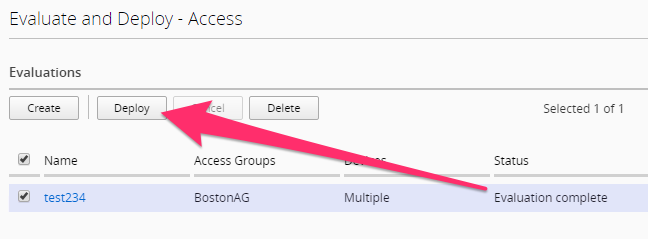

Now click the Deploy button in the Evaluations section and wait for the Deployment tast to complete.

You can verify on BigIP that the access profile changes were pushed:

WORKFLOW 4: Create a new VPN Access profile¶

• Navigate to ConfigurationAccessAccess Groups
• Select BostonAG

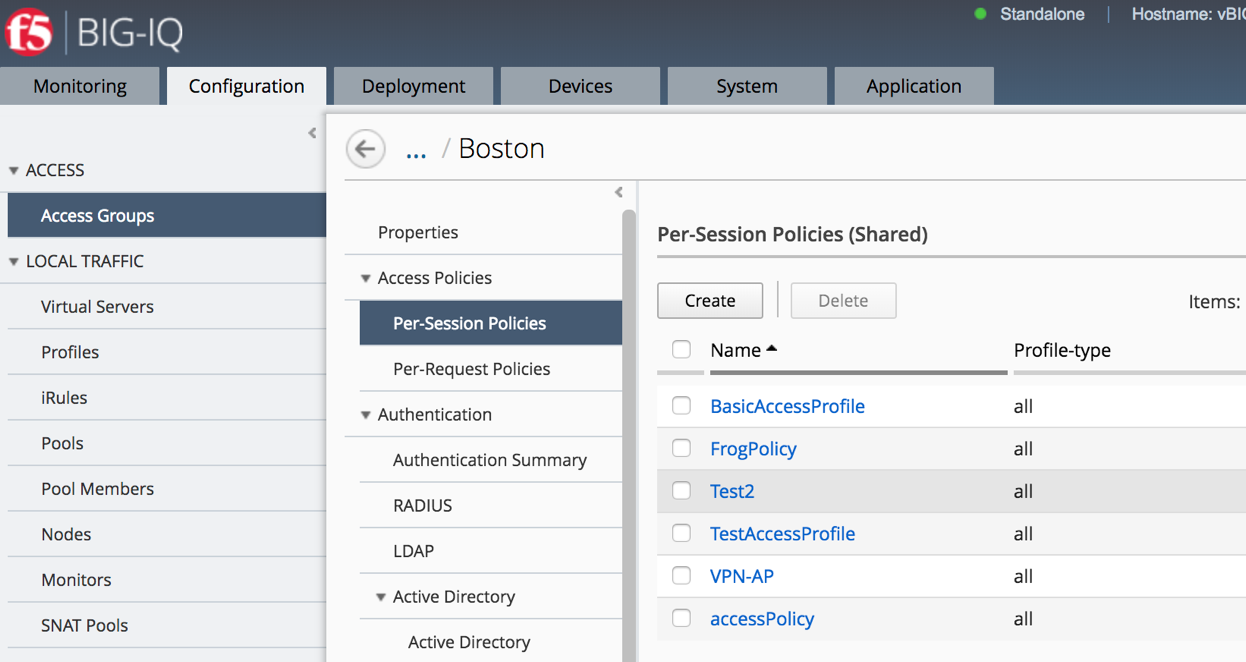

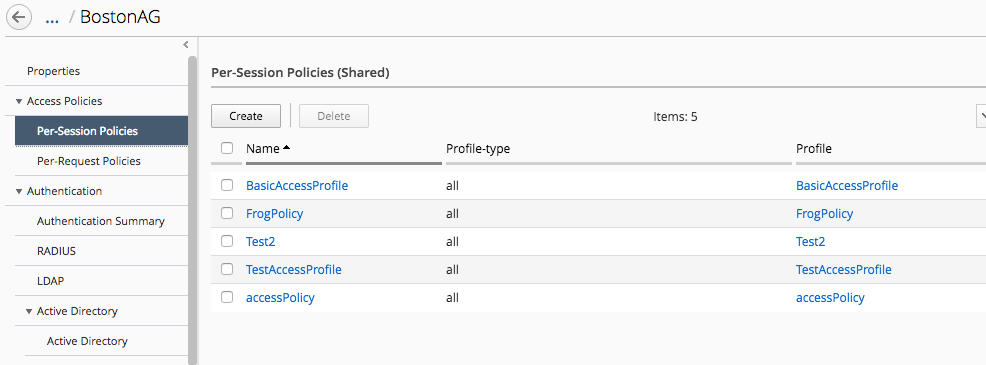

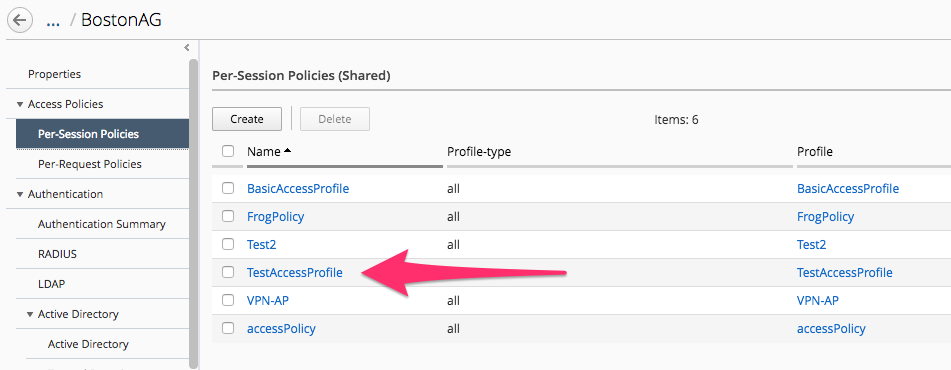

You can see all of the access policies listed in the Per Session Policies:

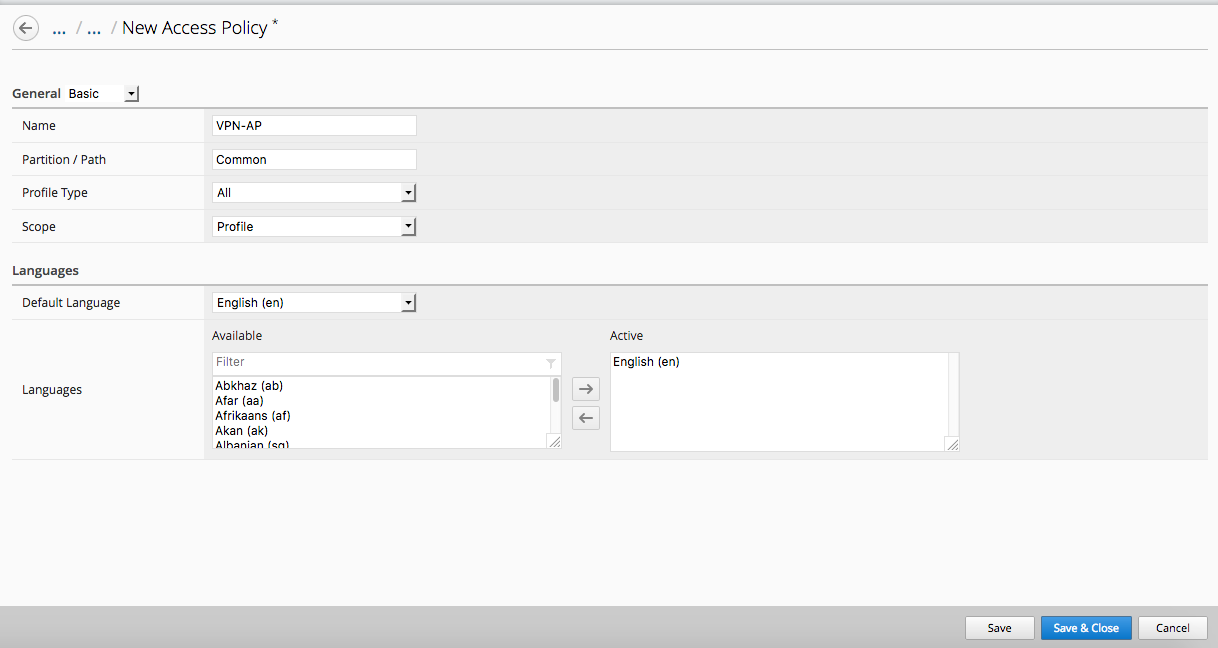

Click Create and you will see the Access Policy creation screen. Give it a name of “VPN-AP” and click on Save & Close. You can change the view from Basic -> Advanced if you want to modify additional settings such as timeouts, SSO, logout URI, etc..

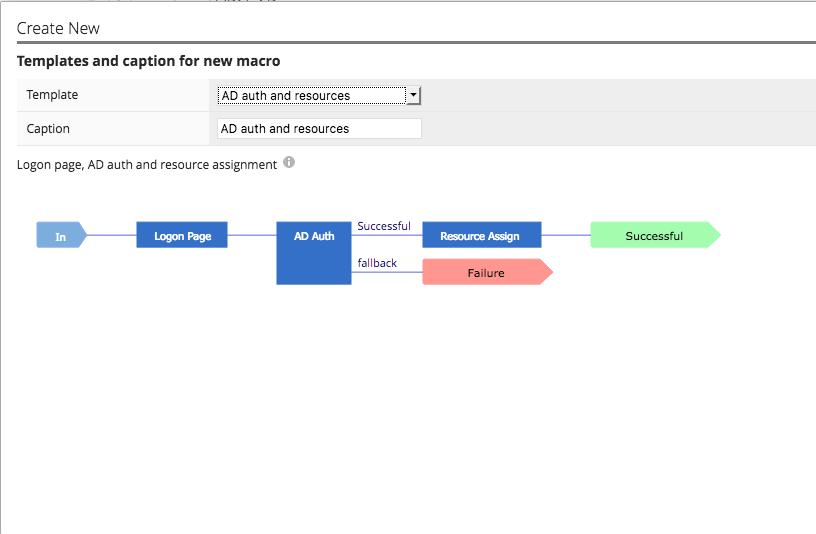

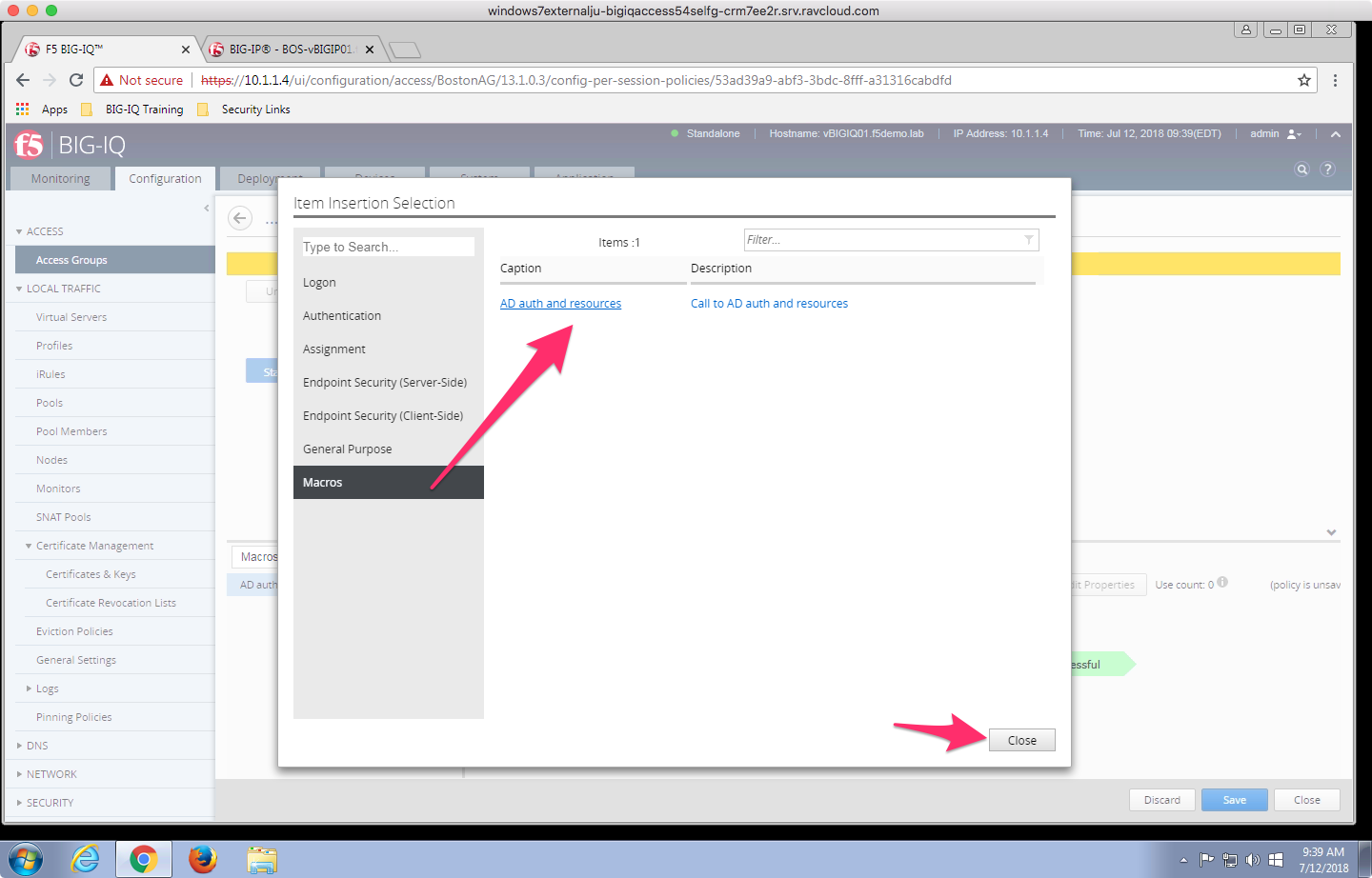

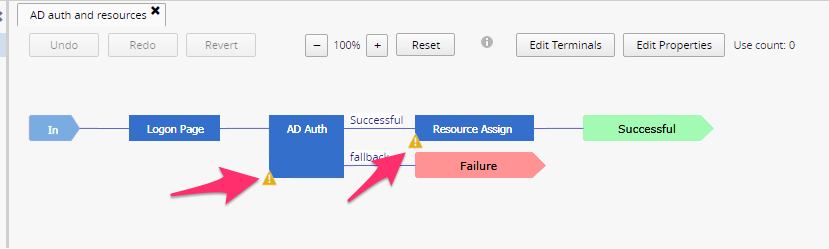

Then click “New” in macros and select “AD Auth and resources” template. Then click the “OK” button.

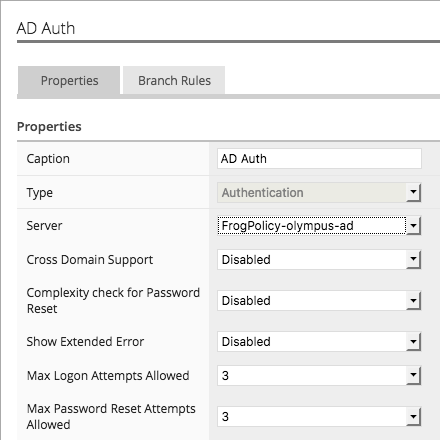

Click on the AD Auth object and use the Server drop down to select FrogPolicy-olympus-ad then click Save.

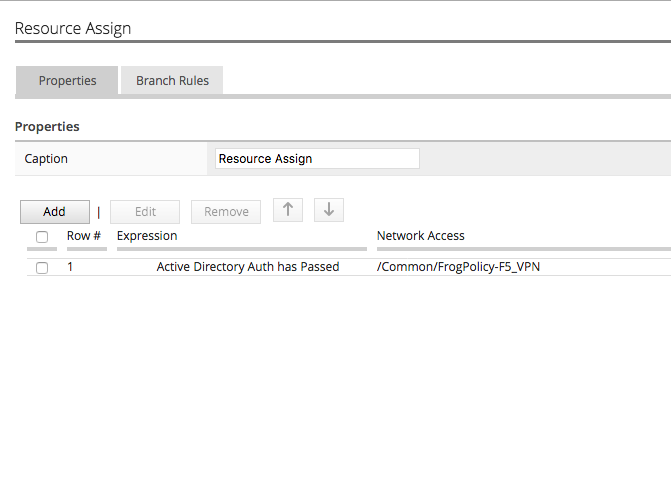

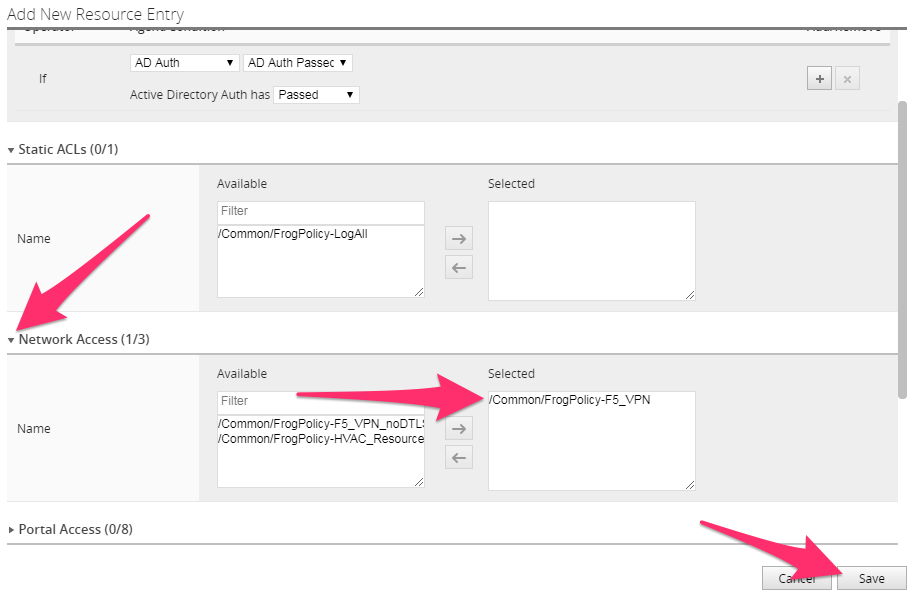

Now click the Resource Assign object. In the pop up window click the Add button. Expand the Network Access section and move the /Common/FrogPolicy-F5_VPN from the Available section to the Selected section and click the Save button.

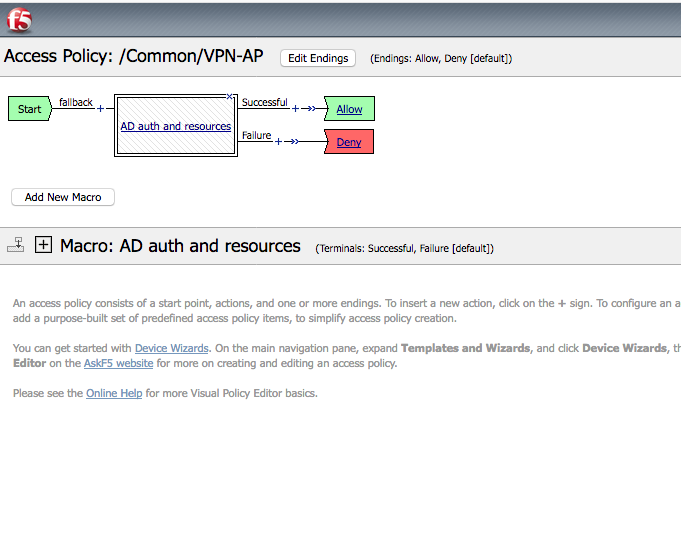

The result will look like the picture below, click the Save button on this screen.

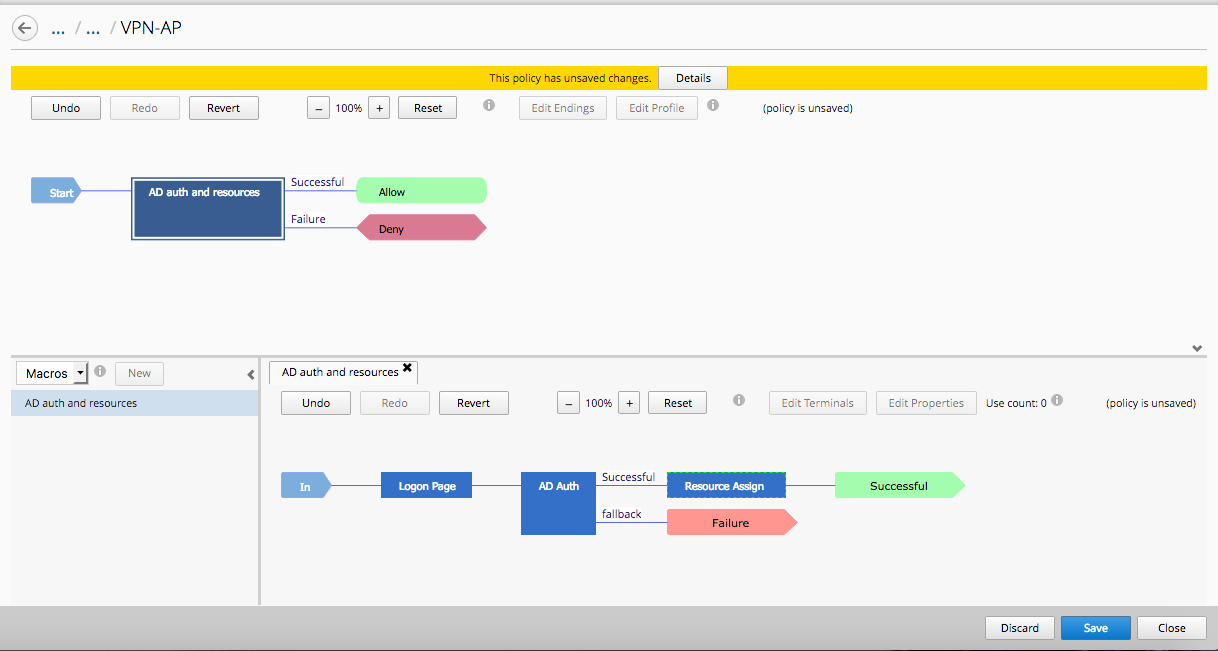

Then add the macro into the VPE by hovering mouse over blue line and selecting the Green plus sign. Then change the ending on the “Successful” branch to Allow. Then click Save buttons to complete.

After creating and saving the access profile, go to “Deployment - > Evaluate & Deploy -> Access”.

Click on “Create” in Evaluations, give it a name, and select BOS-vBIGIP01/02 devices.

Click on View after the evaluation is done to view the changes in Green.

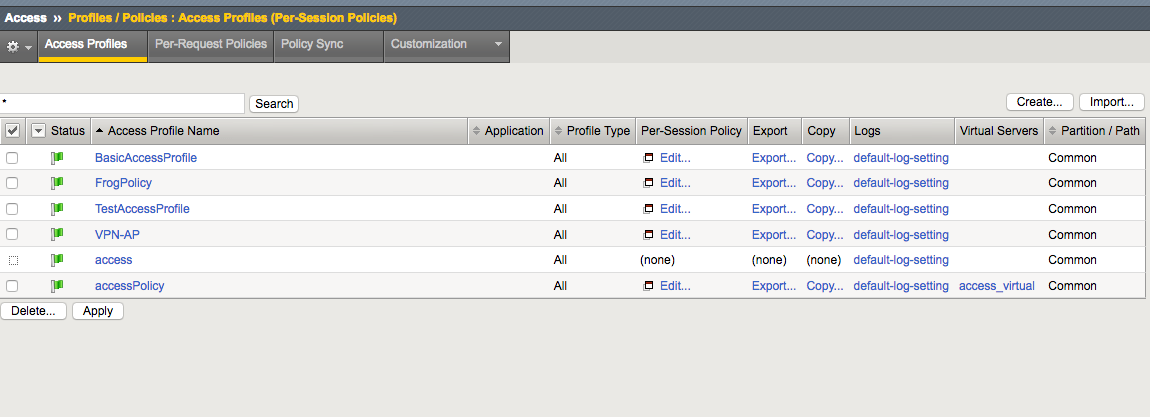

Then Click on Deploy and verify the new VPN Access Profile is pushed onto the BIG-IP device BOS01.

WORKFLOW 5: View APM Audit logs and Dashboards¶

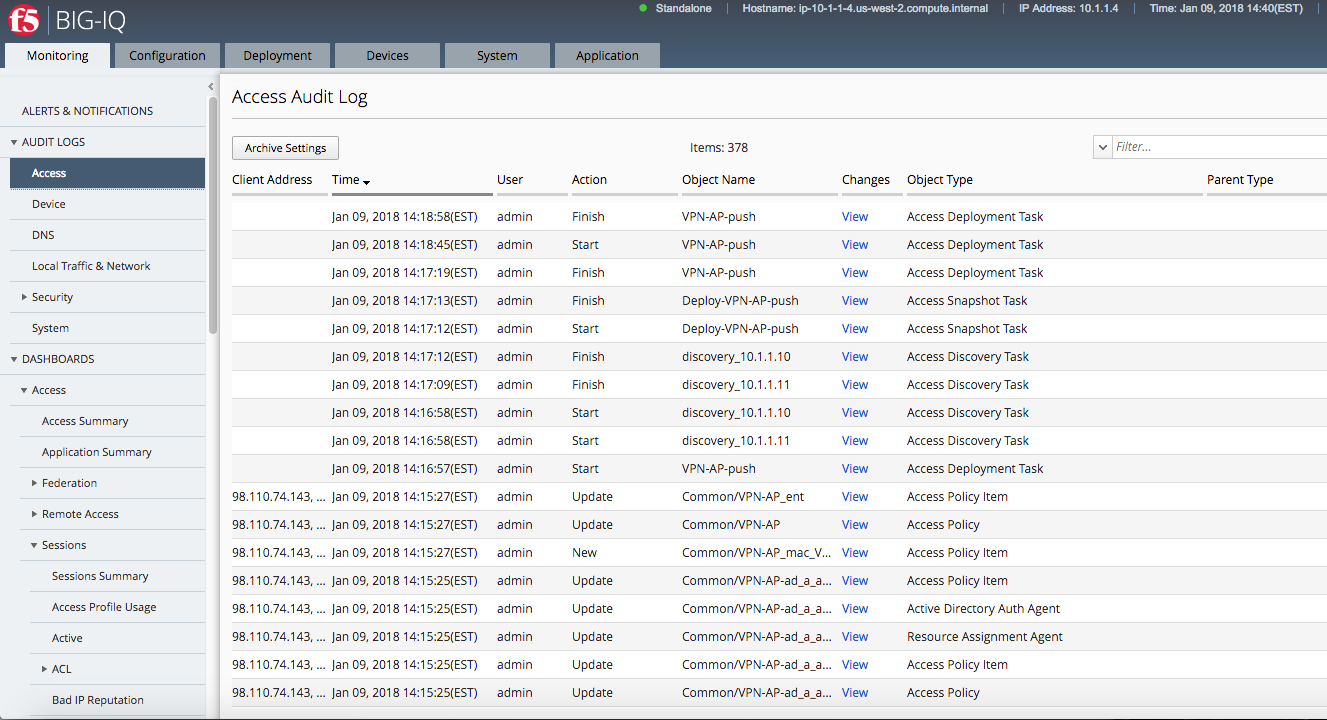

Navigate to Monitoring Audit Logs Access

Note: In case you do not have any data in BIG-IQ, check the active session in Access tab in BIG-IP Boston Active cluster. If the session shows pending (blue), restart the apmd process on the BIG-IP (bigstart restart apmd).

We will now walk through several different Dashboards available under the Access portion of BIG-IQ. During this exercise we will bring attention to several key areas of interest for Adminstrators.

Start by following along the separate menu paths below to each sub-menu section for Access Dashboards:

Navigate to Monitoring Dashboards Access

• View Access Summary

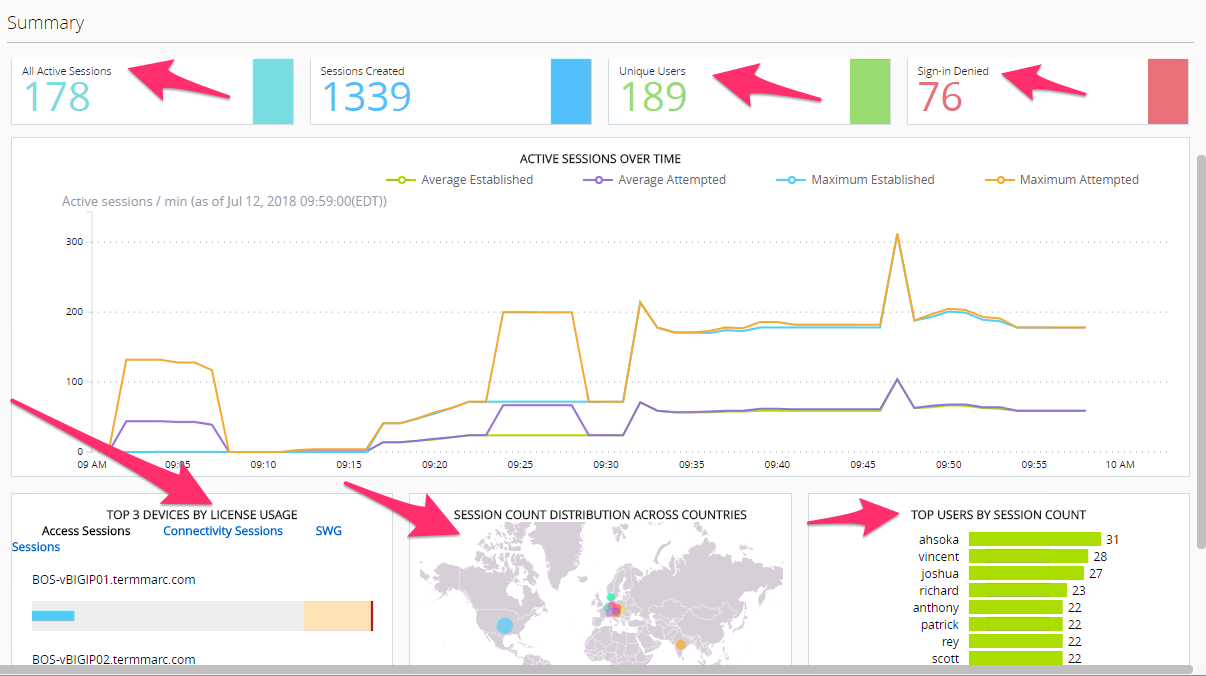

  Notice the layout provides a great overview of usage of the entire Access infrastructure of devices which are currently under management with BIG-IQ. This single page view provide a quick snapshot view of license usage, Geographic access usage, top users, Session counts and Denied Sign-Ins. There is a time slider at the top of the page allowing the Admin to apply constraints of the time period for which the graphs and session counts should display. Take notice of the current Session counts and Sign-In Denied count, then adjust the left time slider moving it to the right slightly. Then adjust the right slider moving it to the left slightly. You will notice the session counts have changed. Now notice from this point an Admin could quickly drill down into certain areas of interest for troubleshooting. Click on the Sign-in Denied number to review further details. On the lower portion of this page you will find a list of denied sessions. You can see the duration of the session for the given user along with the username, client ip, and in this example IP-Reputation matched that prevented access for many of the sessions.

• Application Summary

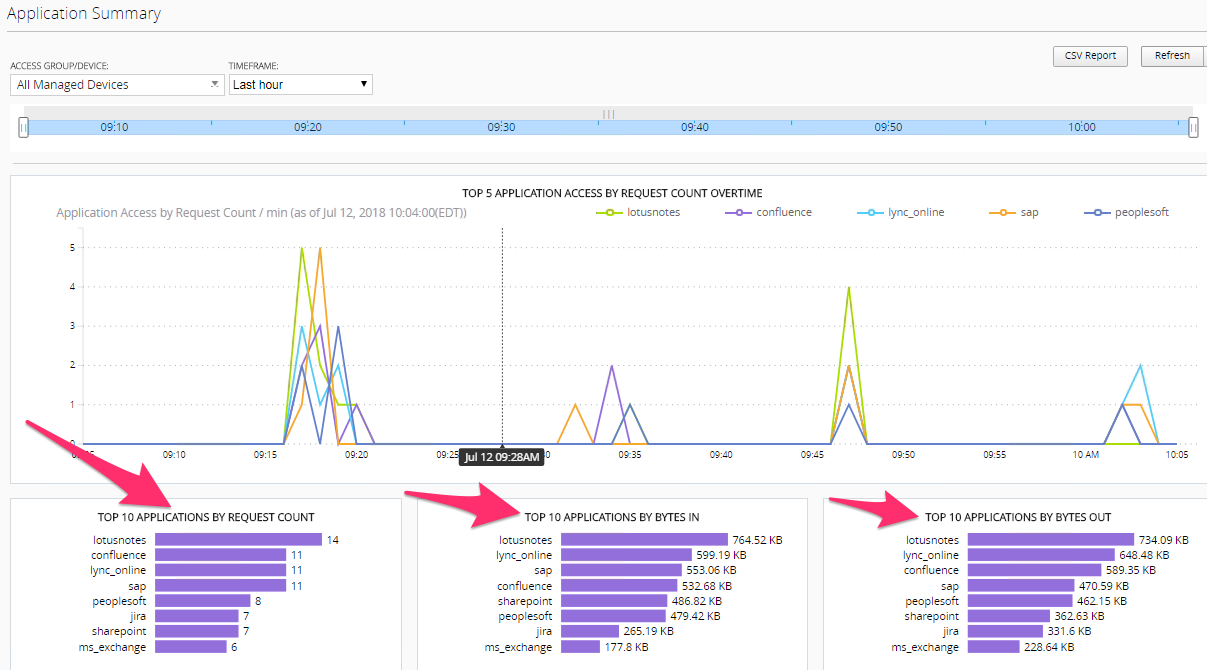

  On the Application Summary screen we can see useage request for Top 10 apps along with Bytes In/Out details and number of Unique Users per application. By clicking on an application name like Confluence we can drill down to the details for that specific application.

• Federation -> SAML ->SP -> SP Summary

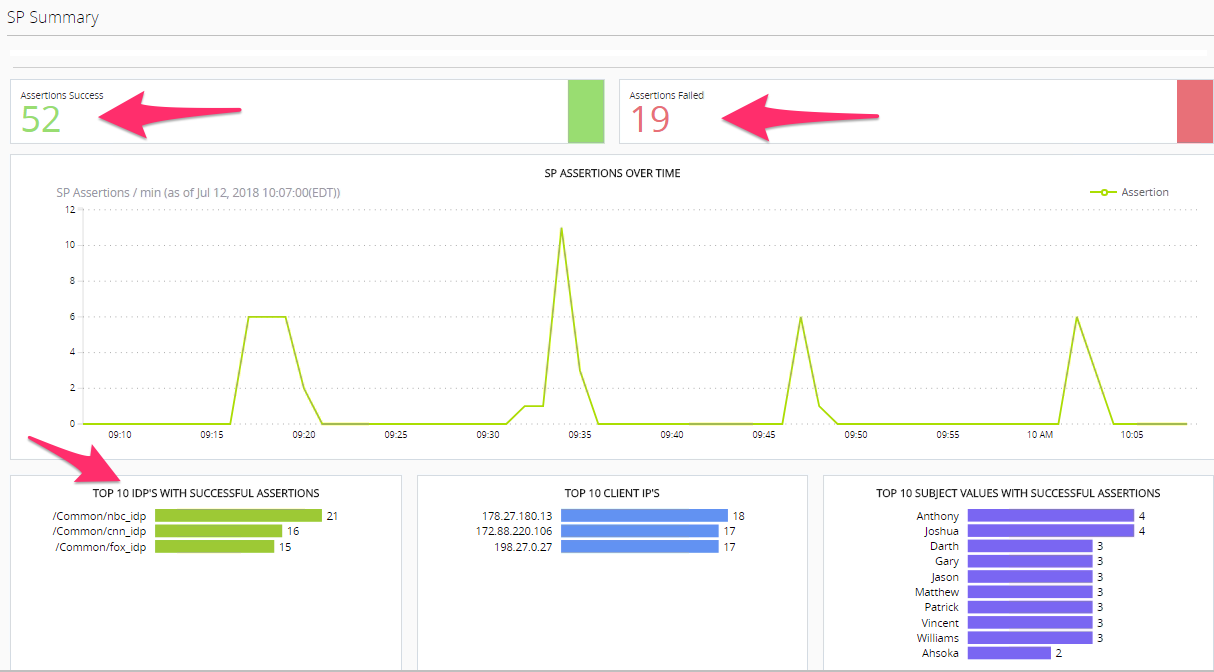

  Federation is being used more widely these days. The BIG-IP Access Policy Manager can perform both SAML Service Provider as well as Identity Provider functions. In this summary screen we see the Federated Assertions for foreign Identity Providers for Services (Applications) hosted from the Access Policy Managers in the organization.

  Once again an Admin can use this screen to start diagnosing issues like Failed Assertions by clicking the lines in that section for drill down details.

• Federation -> SAML ->IdP -> IdP Summary

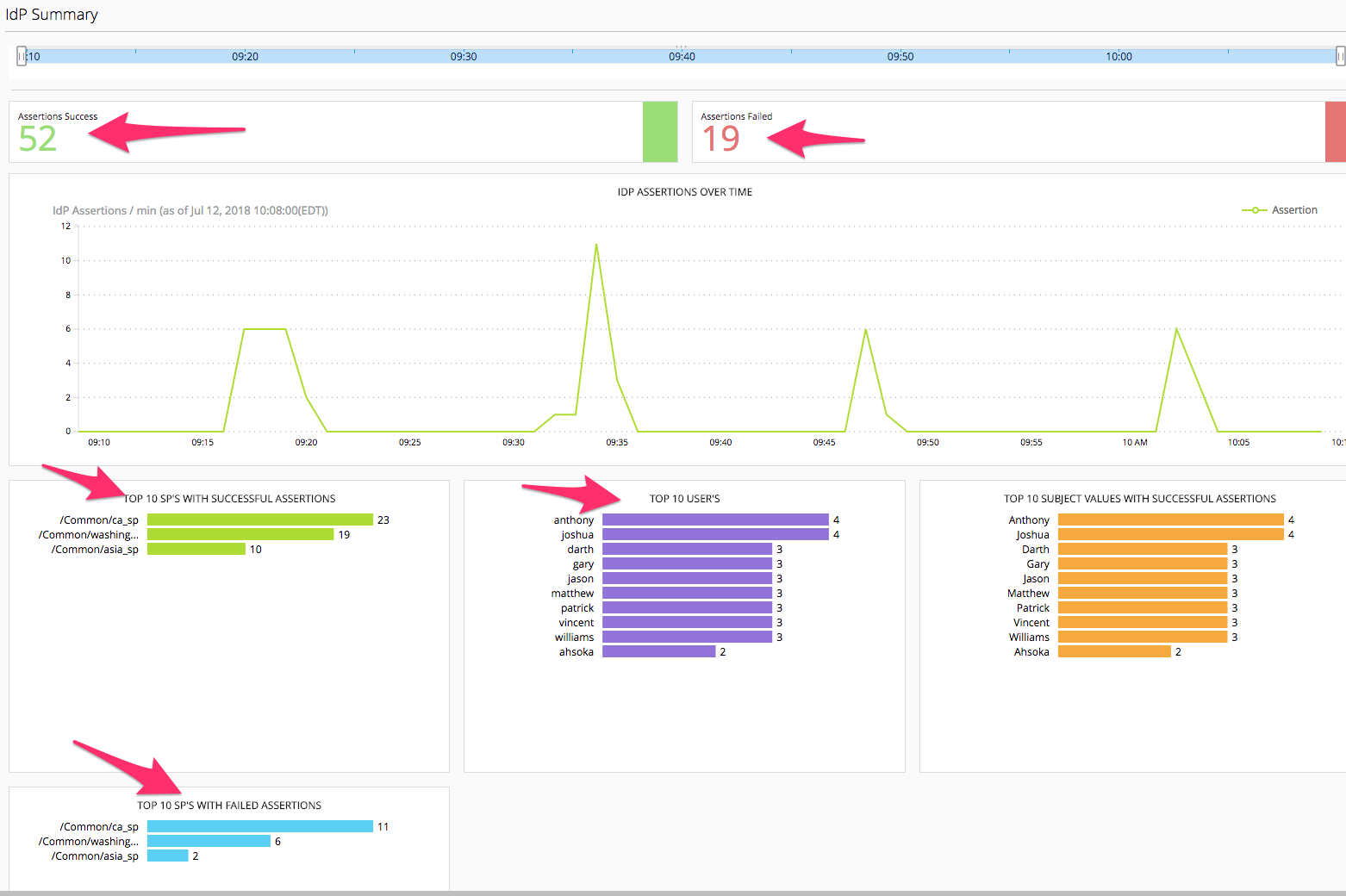

  In the IdP Summary screen we see when the BIG-IP Access Policy Manager is acting as the Identity Provider and providing assertions to external Service Provider hosted applications. Same drill down/troubleshooting benefits can be found here for the Administrators of the Access environment.

• Remote Access -> Network Access -> Network Access Summary

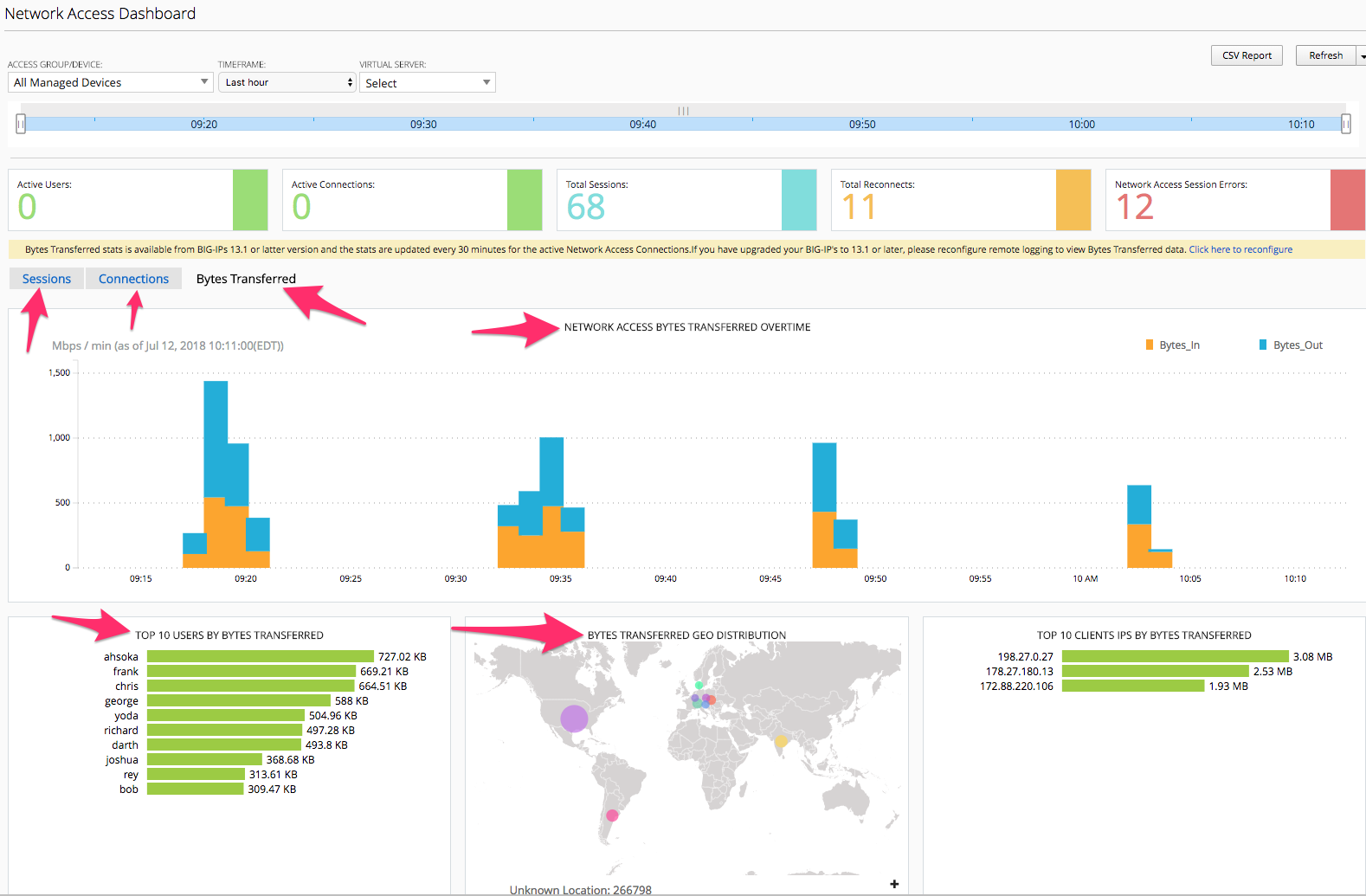

  In the Network Access Summary screen you will notice something new between the user counts number at top and the graph below them. There are three TABS, Sessions, Connections, Bytes Transferred. You will currently be selected/presented with the Sessions Tab information. Click the Connections tab and review. Now click the Bytes Transferred tab. As of version 13.1 TMOS code that runs on the BIG-IPs the BIG-IQ 5.4 can display these details for reporting and troubleshooting and capacity usage and planning.

• Remote Access -> Network Access -> Network Access Usage

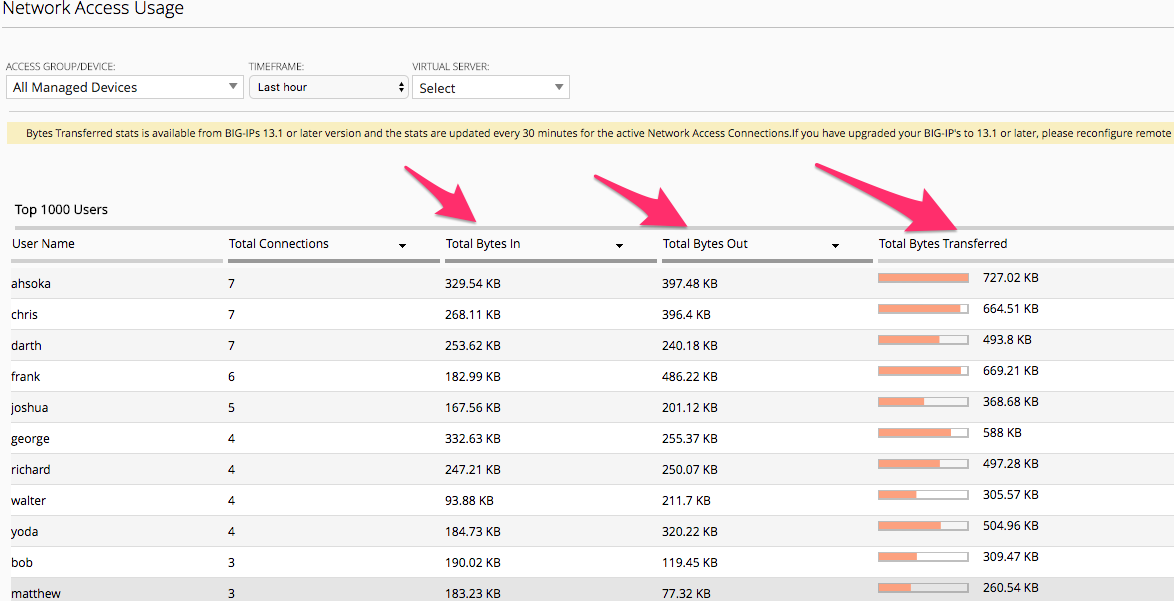

  This screen again is providing more detailed reporting of the Bytes In/Out/Transferred by given users for the Admin to utilize.

• Remote Access -> VDI Summary

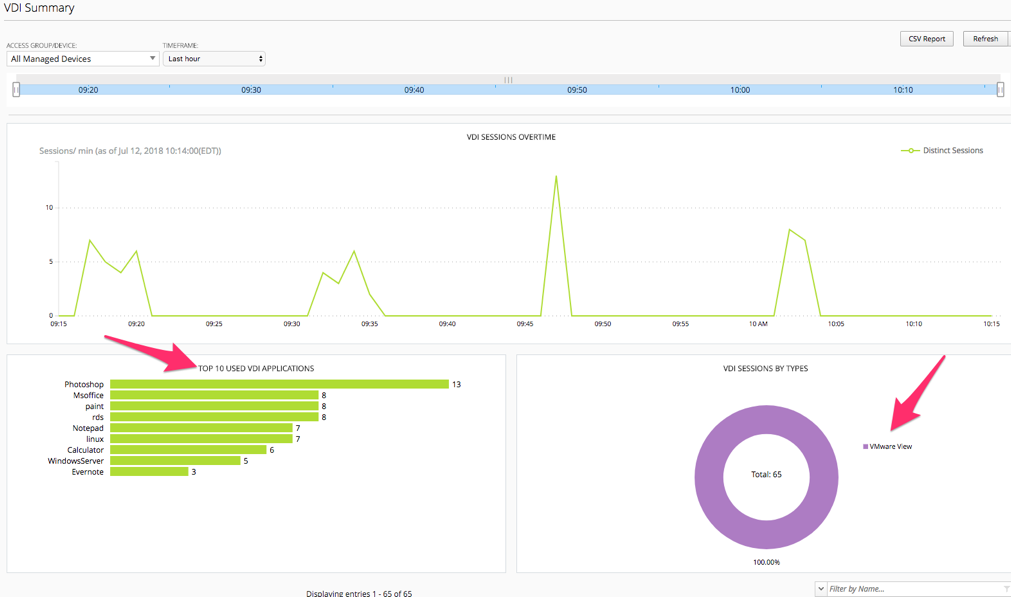

  Many companies have implemented the use of Virtual Desktop Infrastructures of the years for deploying either individual published applications or full desktops for users. This summary screen provides reporting on the usage of those VDI objects being served through the BIG-IP Access Policy Manager working as a VDI Proxy for the three major flavors of VDI technology from Microsoft RDP, VMWare Horizon and Citrix XenApp/XenDesktop.

• Sessions -> Sessions Summary

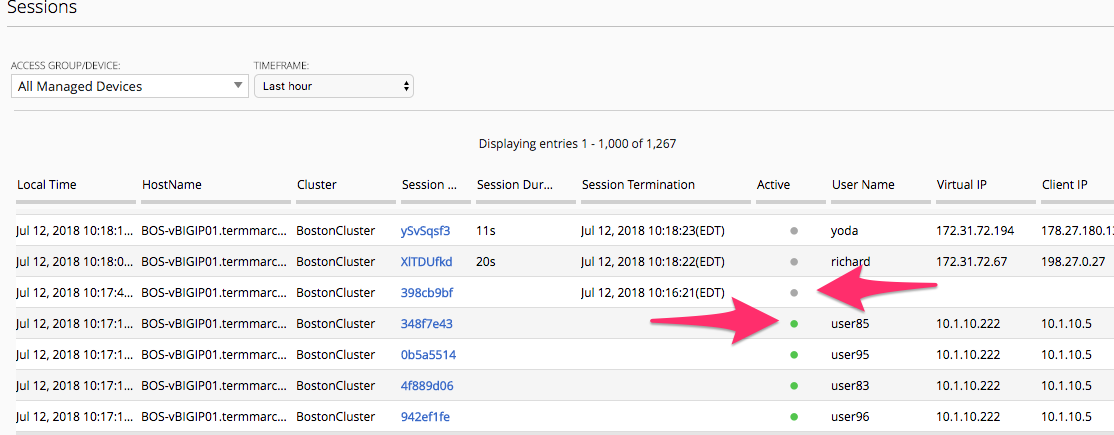

  As we review the Session Summary screen you should notice under the ACTIVE column there are Green Dots for sessions that are currently active however this screen is displaying the list of all sessions even those denied sessions we reviewed earlier. You can click on the session ID to review the policy events for a given session.

• Sessions -> Active

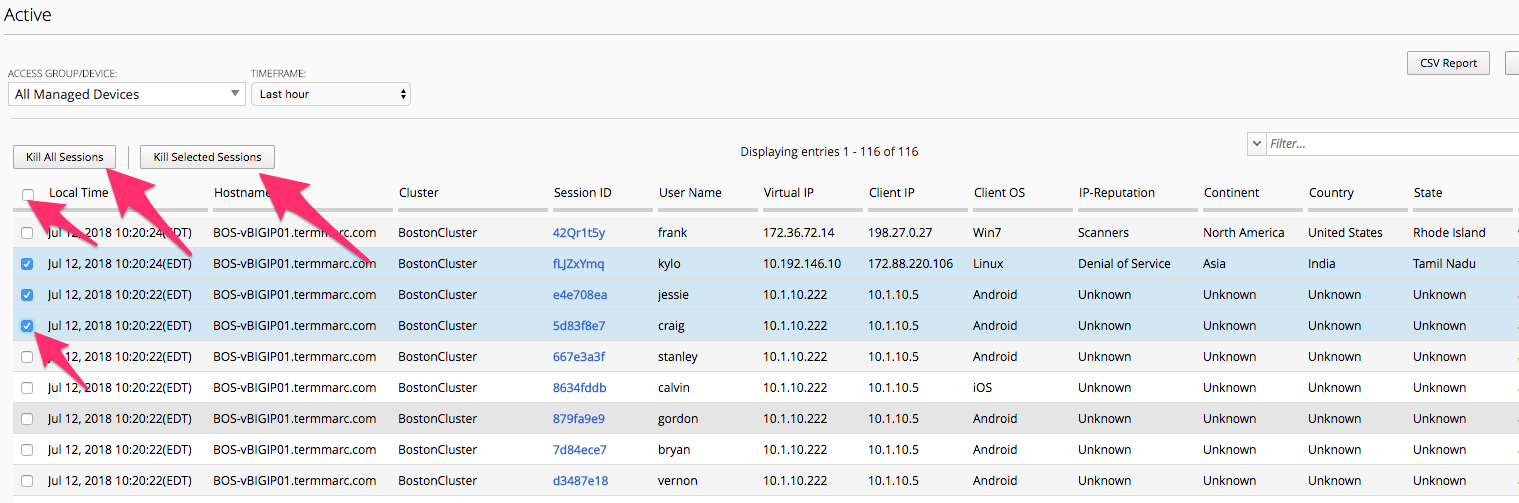

  In this screen we are only reporting the Currently Active Sessions. Notice the check box to the left of eash session. You can click to check a box and the button above “Kill Selected Sessions” will be un-grayed allowing the Admin to kill the checked sessions. If the Admin were to click the check box in the Column header it would check all sessions boxes and the Kill All Sessions and/or Kill Selected Sessions buttons would then perform the kill on all sessions. In both scenarios the Admin is presented with a Confirmation Screen before actually killing those checked sessions.

• Sessions -> Bad IP Reputation

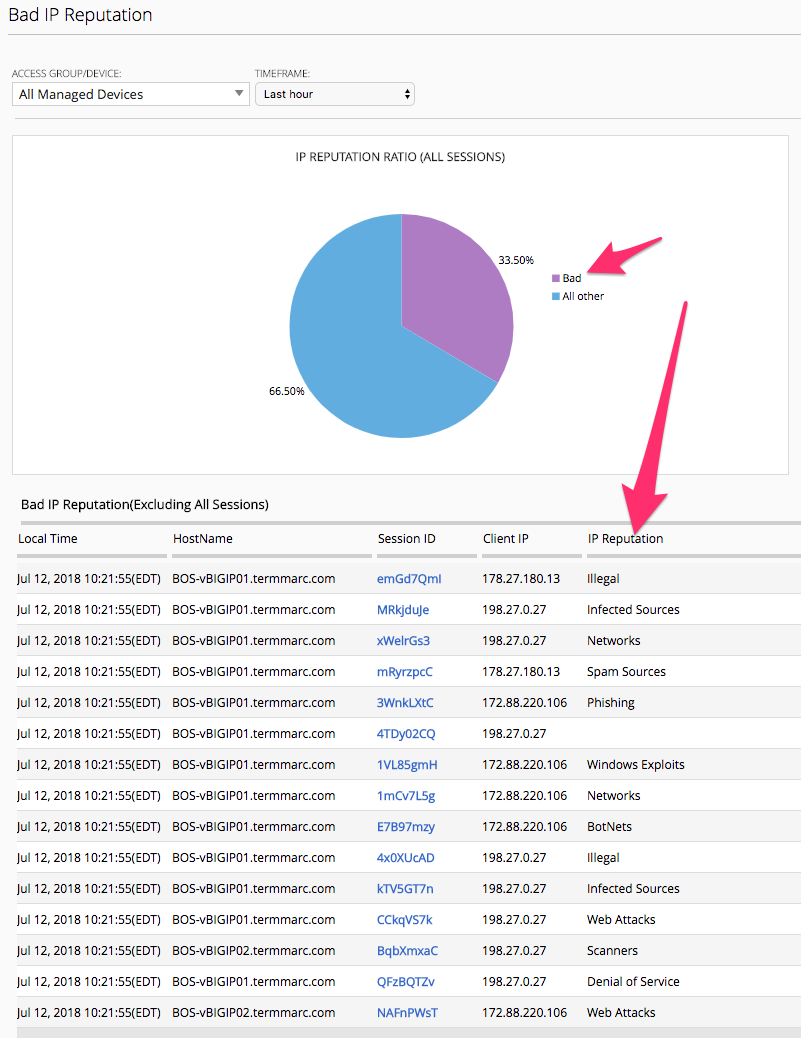

  In this section we can see the reported IP Reputation data for incoming requests to the APM Policies.

• Sessions -> Bowsers and OS

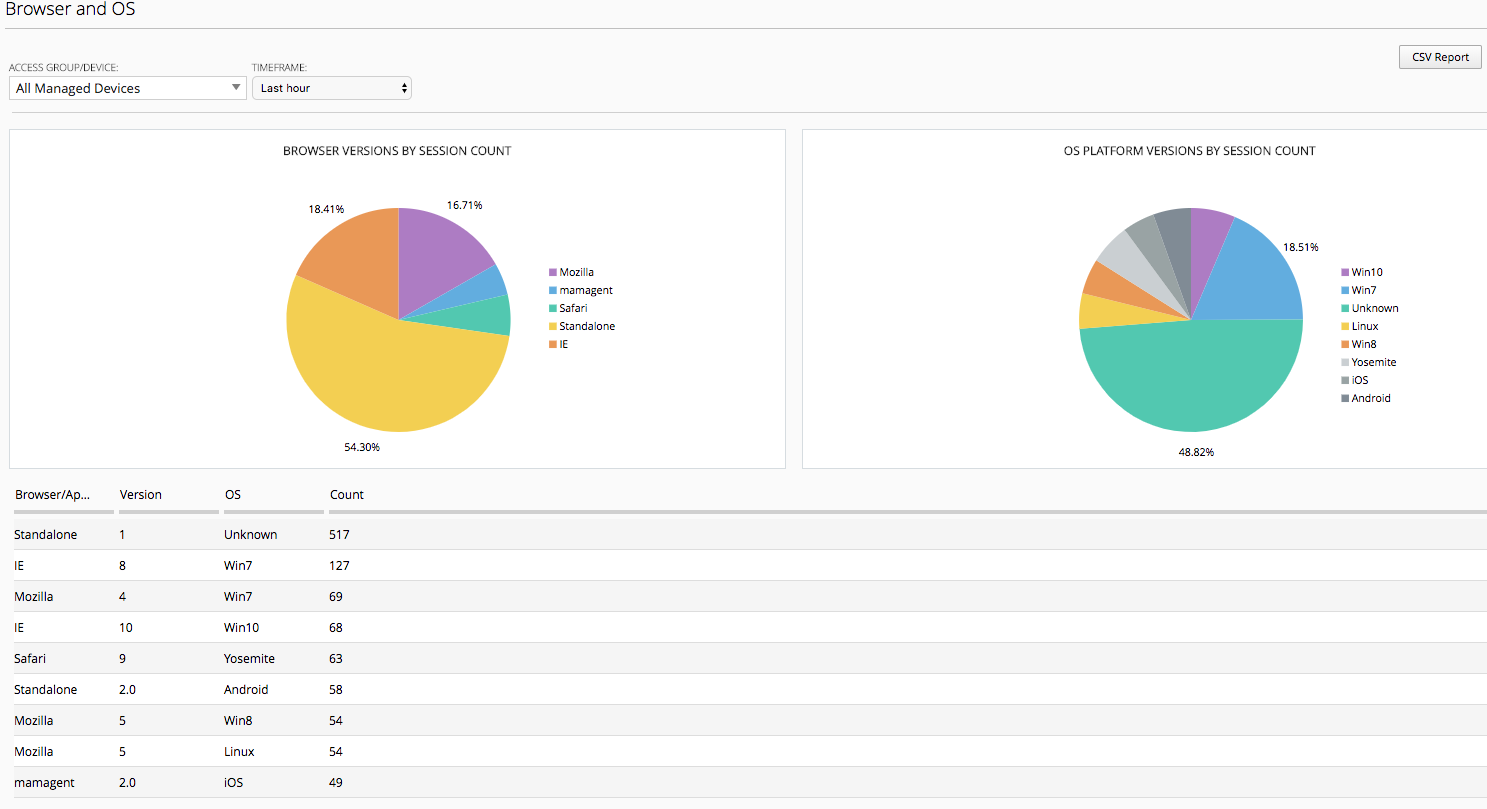

  This screen provide details of browser types and OSes being used to access the APM policies. This is great information if an organization has specific policies in place that stipulate which Browsers and OSes that support. The Admin can quickly see where they fall in line with those policies.

• Sessions -> By Geolocation

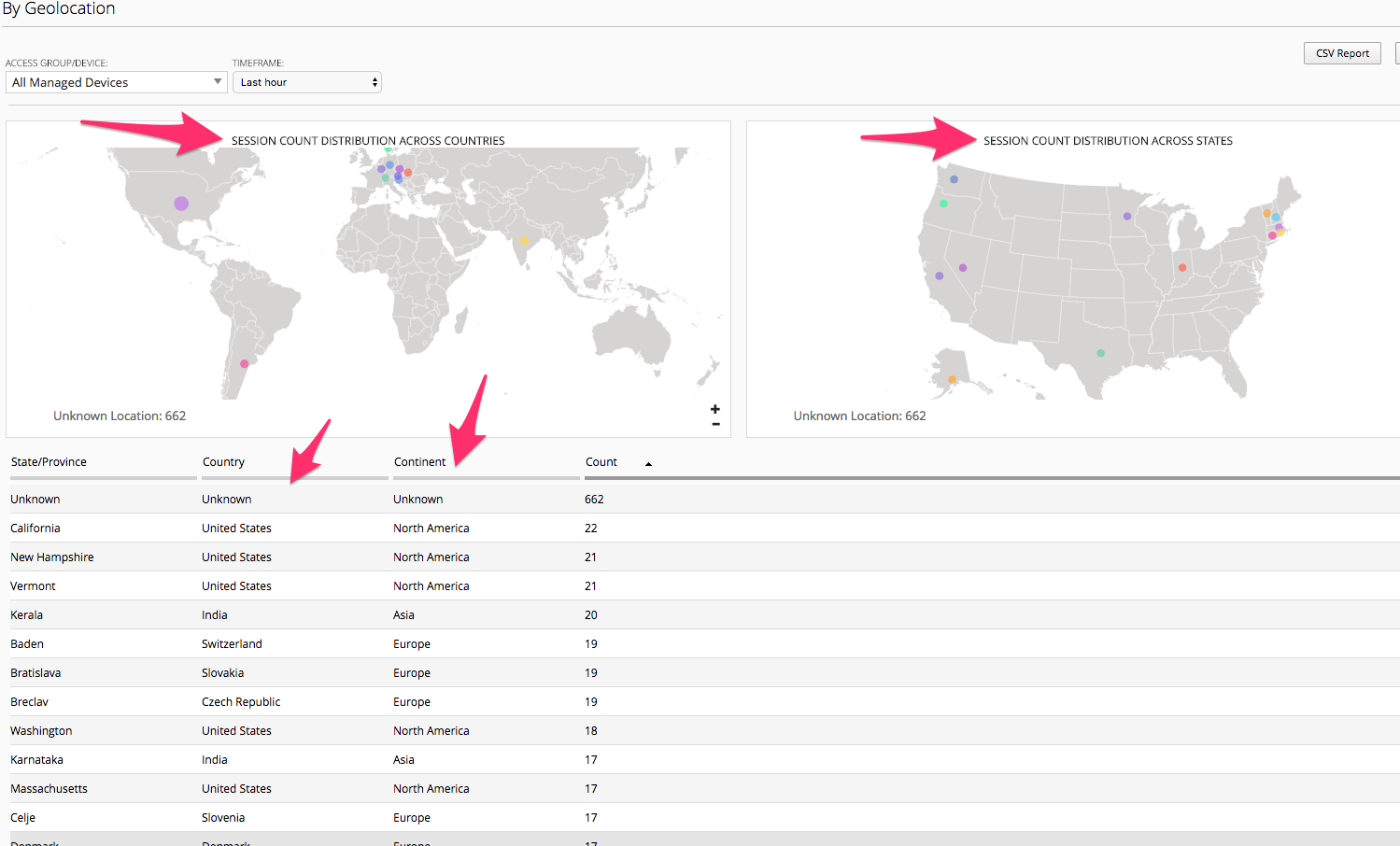

  This reporting screen provides a Heatmap displaying from where access attempts are being initiated from. If an organization only allowed or supported access from certain geographic regions this screen can provide quick details on possible bad actor attempts to the organizations Access infrastructure.

• Endpoint Software -> Endpoint Software Summary

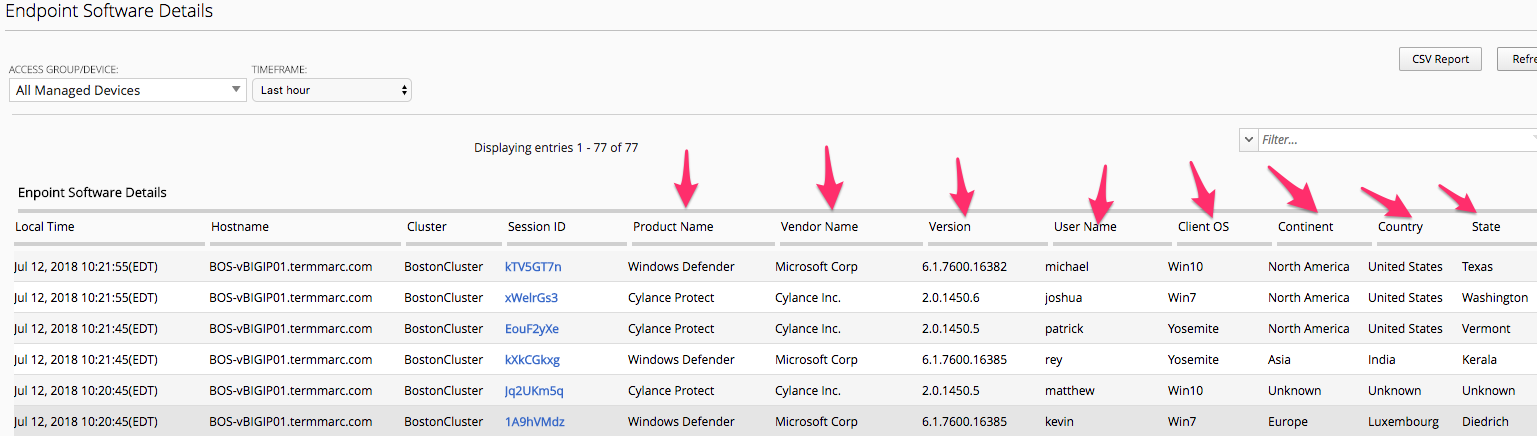

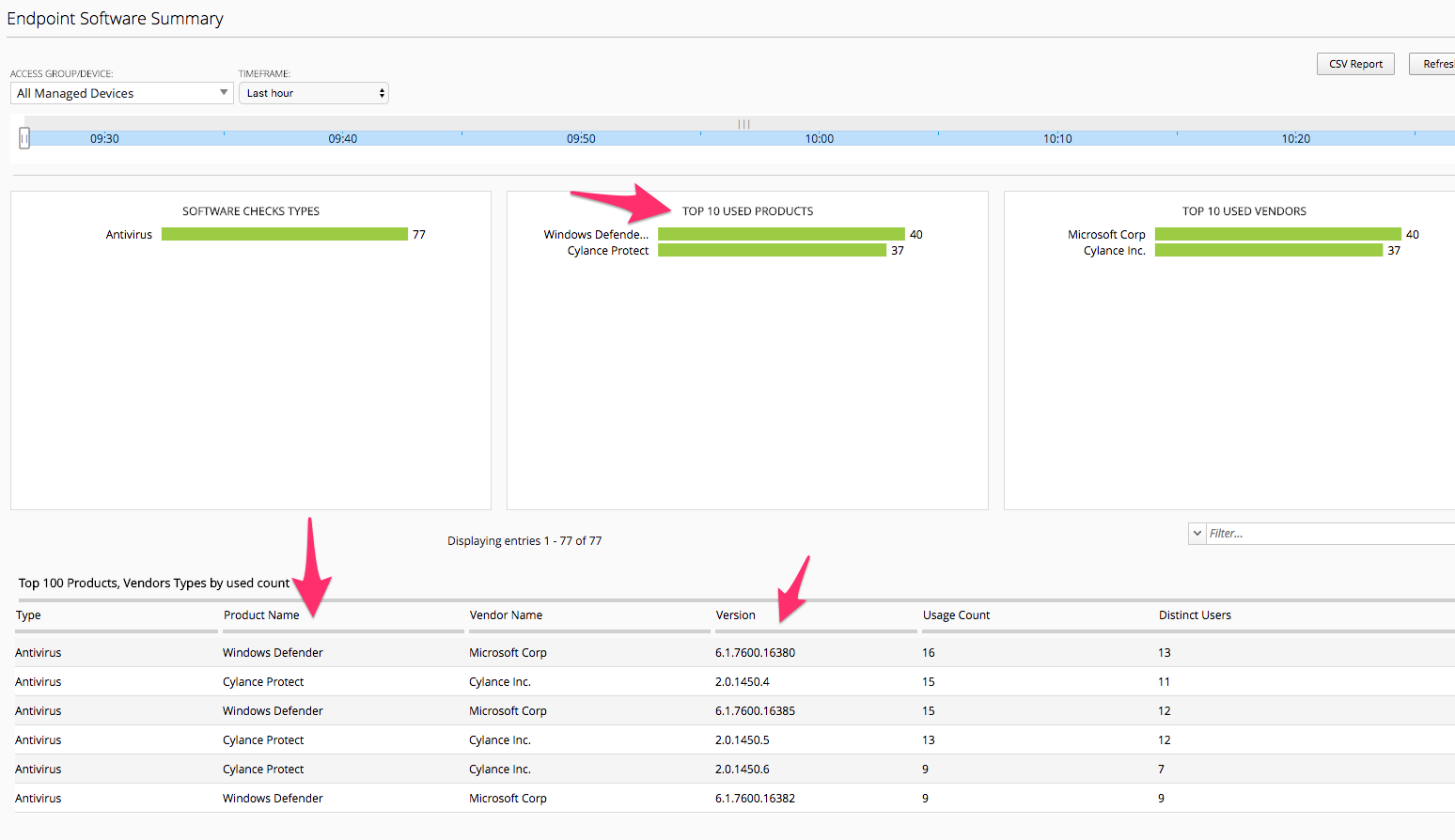

  You may need to reset the Timeframe either by adjusting the sliders or using the Timeframe dropdown. This screen provides information of Endpoint Software in use by clients and detected via the Endpoint Inspection helper applications that run on clients systems and report back to the BIG-IP Access Policy Manager during access.

• Endpoint Software -> Endpoint Software Details



  This is another great troubleshooting screen to review versions of client AV software.

• License Usage

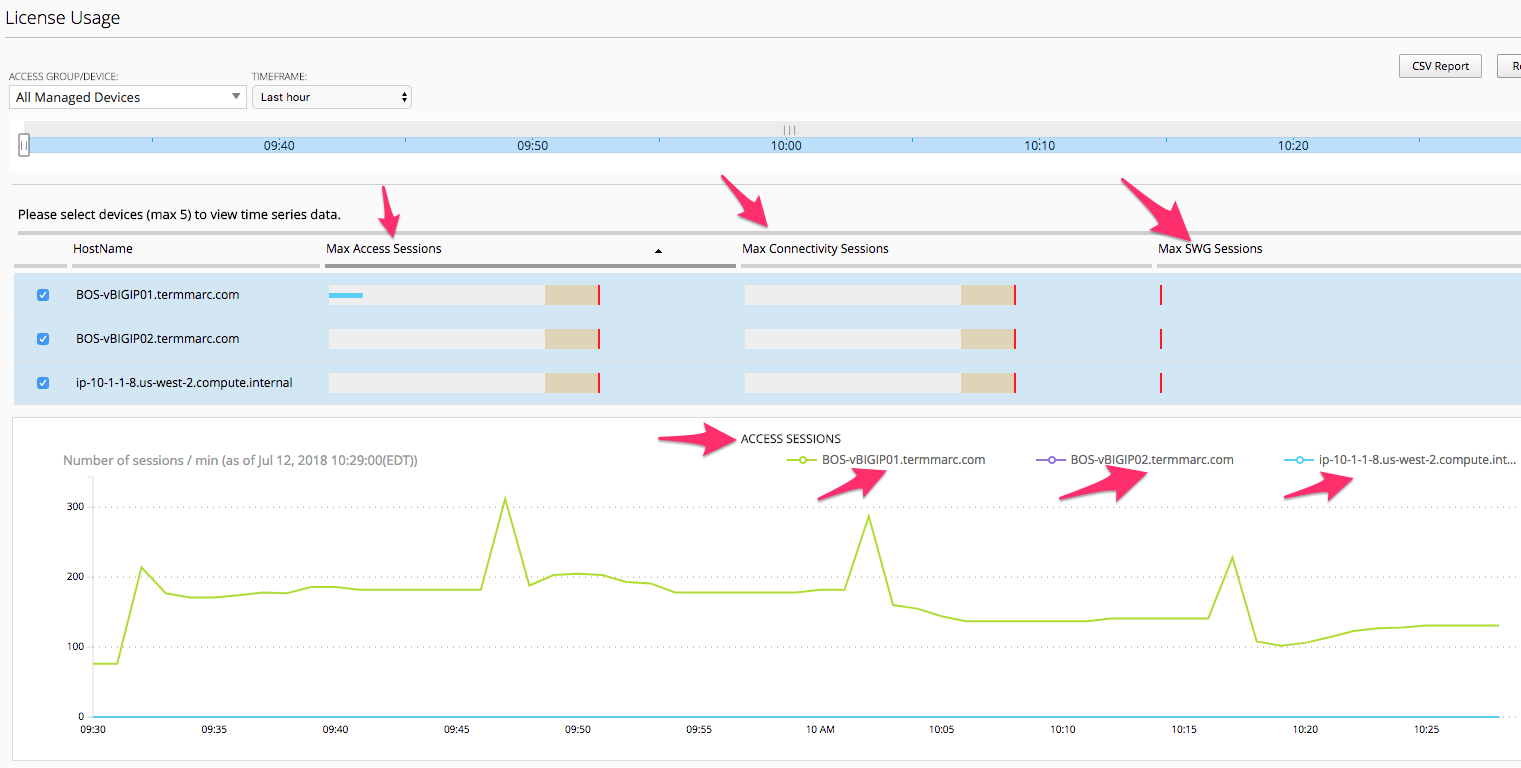

  This screen provides an overview of the Access Policy Manager license usage for both Access Session licenses as well as Connectivity Session licenses per APM Device.

• User Summary

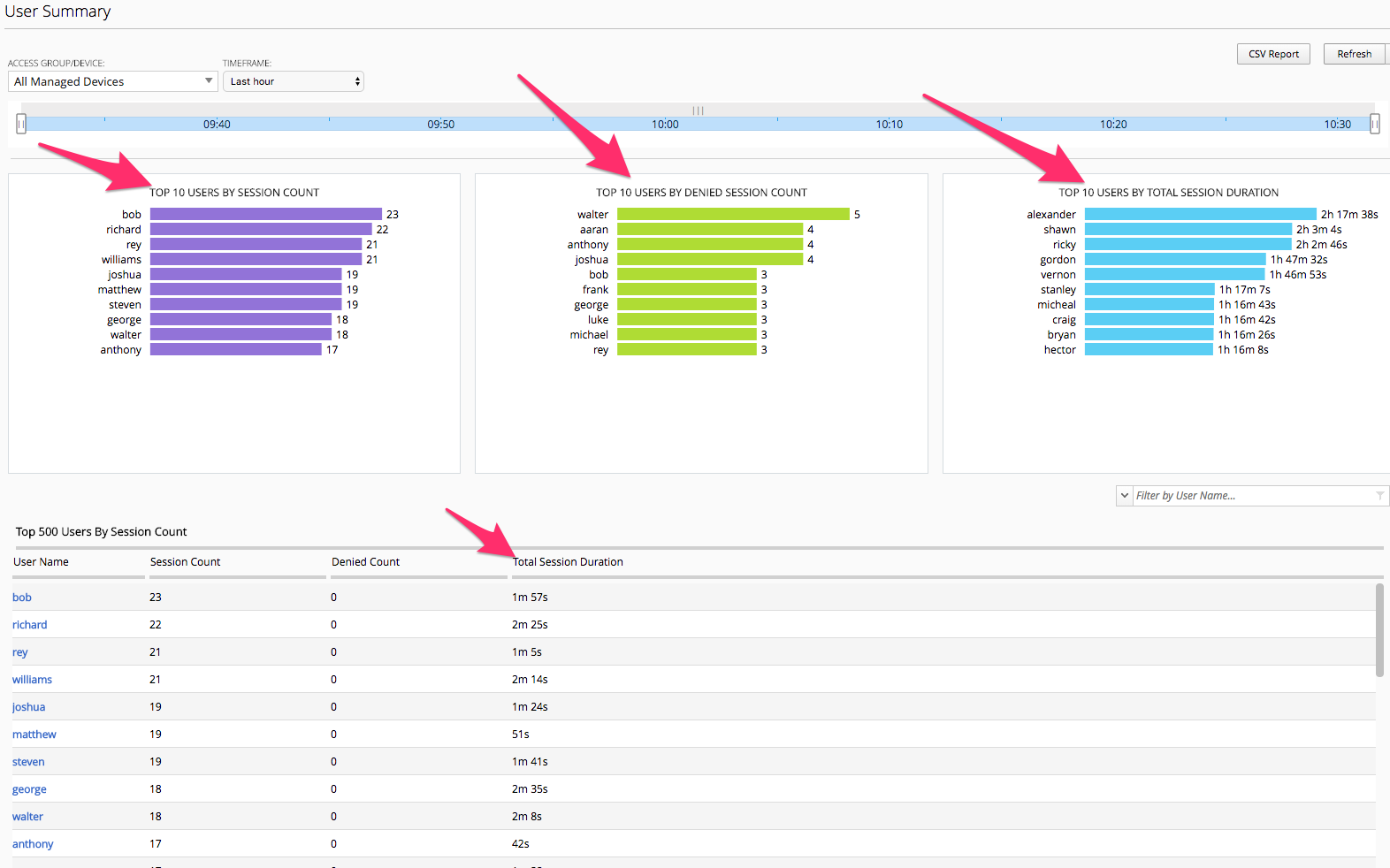

  In the user summary screen one item that can be useful to an Admin is the Filter Search field by Username. If your organization has a large community of users accessing in many different methods or applications the ability to filter by username and drill into those sessions for a specific user are helpful for troubleshooting issues.

These were just a few of the screens available however taking the time to review this Monitoring Dashboards with live data can be helpful in getting familiar with Admin duties for Access Policy infrastructure using the BIG-IQ Centralized Manager.
